Samsung patents chip stack that uses wire balls to identify layers

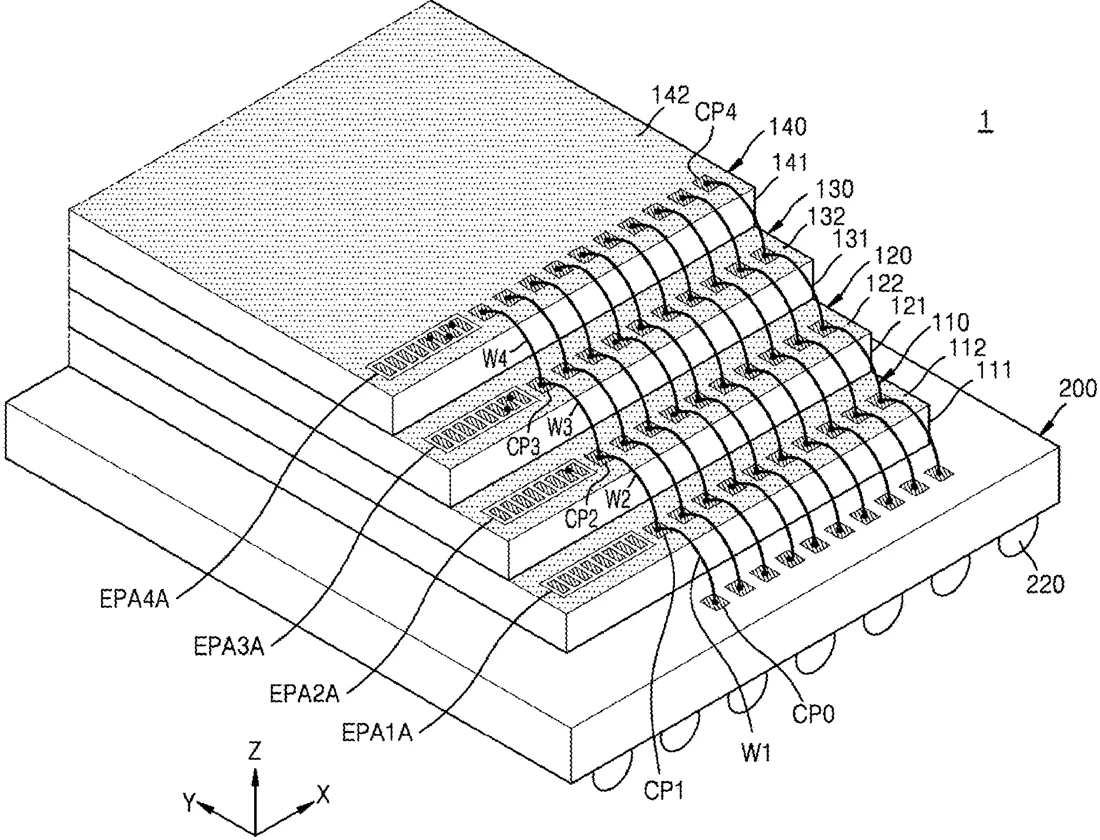

Samsung describes a semiconductor package where multiple chips are stacked in a step-like shape. Each chip has a specific pattern of pads and resistors, with optional metal wire balls bridging certain pads to create a unique electrical signature for that layer.
In the filing’s own words
A semiconductor package is provided. The semiconductor package includes a package substrate and a plurality of semiconductor chips stacked on the package substrate in a stepwise manner. Each semiconductor chip includes a plurality of chip pads and an identification pad array. The identification pad array includes a plurality of identification pads electrically connected in series, with an identification resistor electrically connected between every two adjacent identification pads. One or more wire balls may be provided in the identification pad array. Each wire ball is disposed on adjacent identification pads and electrically connects the adjacent identification pads to each other.
What exactly they claim (claim 1)
1. A semiconductor package comprising: a package substrate; and a plurality of semiconductor chips stacked on the package substrate in a stepwise manner, wherein each of the plurality of semiconductor chips includes a plurality of chip pads and an identification pad array, the identification pad array includes a plurality of identification pads, the plurality of identification pads are electrically connected in series, an identification resistor is electrically connected between every two adjacent identification pads of the plurality of identification pads, the identification pad array includes no wire ball or includes at least one wire ball, and each wire ball, when present, is disposed on adjacent identification pads and electrically connects the adjacent identification pads to each other, a power source is connected to one end of the series connection of the plurality of identification pads, a ground is connected to another end of the series connection of the plurality of identification pads, and a reference resistor is provided between the plurality of identification pads and the ground.
