Samsung patents image sensor using trenches to fit capacitors
Samsung has filed a patent for an image sensor design that places a capacitor inside a trench in the sensor's base material. This setup connects the capacitor between two transistors to help manage the electrical signals captured by the sensor.
In the filing’s own words

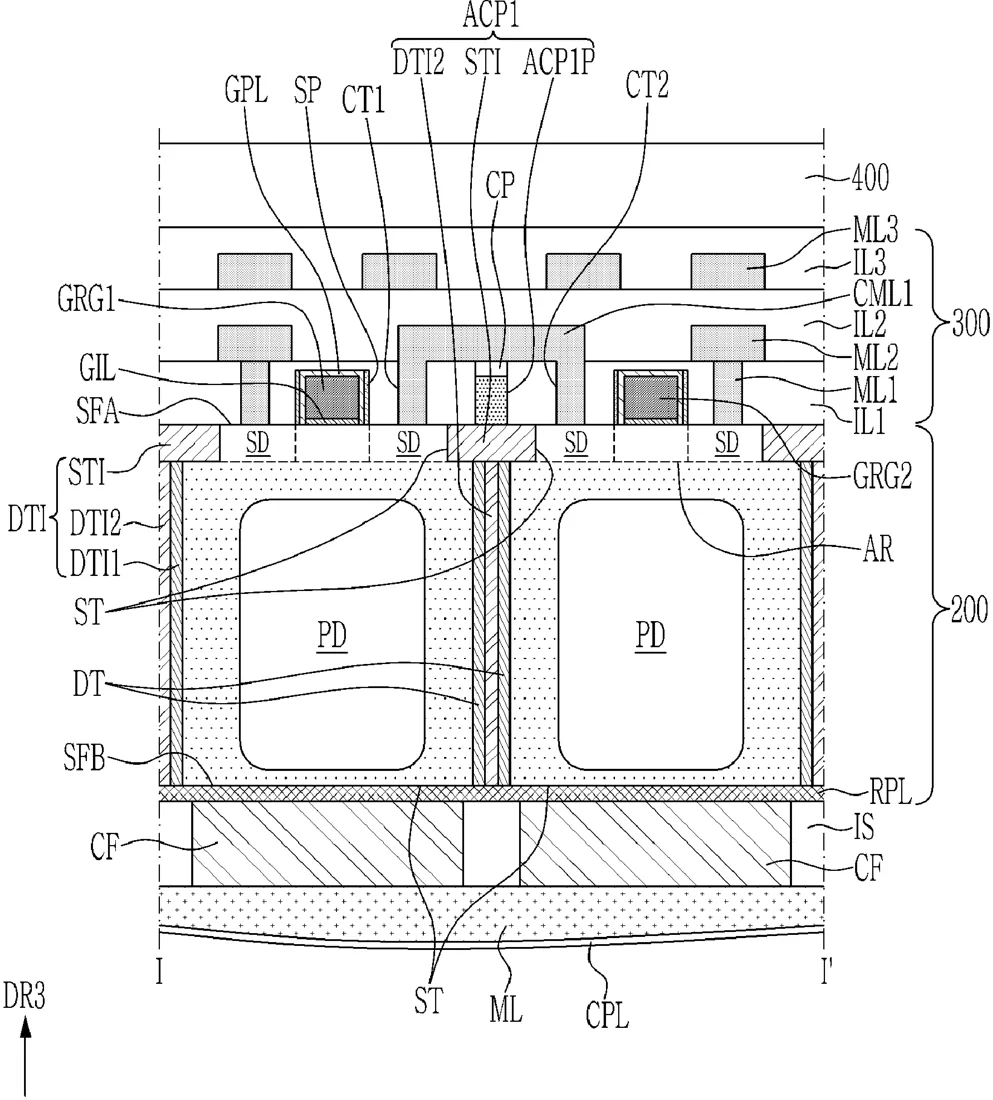

An image sensor includes a floating diffusion region in a substrate, a first transistor connected to the floating diffusion region and a second transistor connected to the first transistor, and a capacitor connected between the first transistor and the second transistor. The capacitor includes a first electrode and a second electrode that overlap with an insulating layer interposed therebetween. The substrate has a trench, and at least a portion of the first electrode is located in the trench and at least a first portion of the second electrode is located on the substrate.
What exactly they claim (claim 1)
1. An image sensor, comprising: a floating diffusion region in a substrate; a first transistor connected to the floating diffusion region and a second transistor connected to the first transistor; and a capacitor connected between the first transistor and the second transistor, wherein the capacitor includes a first electrode and a second electrode that overlap with an insulating layer interposed therebetween, wherein the substrate has a trench, and wherein at least a portion of the first electrode is located in the trench and at least a first portion of the second electrode is located on the substrate.
