Samsung patents chip design with uneven spacing between internal layers
Samsung has filed a patent for a semiconductor device where the gaps between stacked internal layers are not uniform. Specifically, the space between the base and the first layer is smaller than the space between the first and second layers.
In the filing’s own words

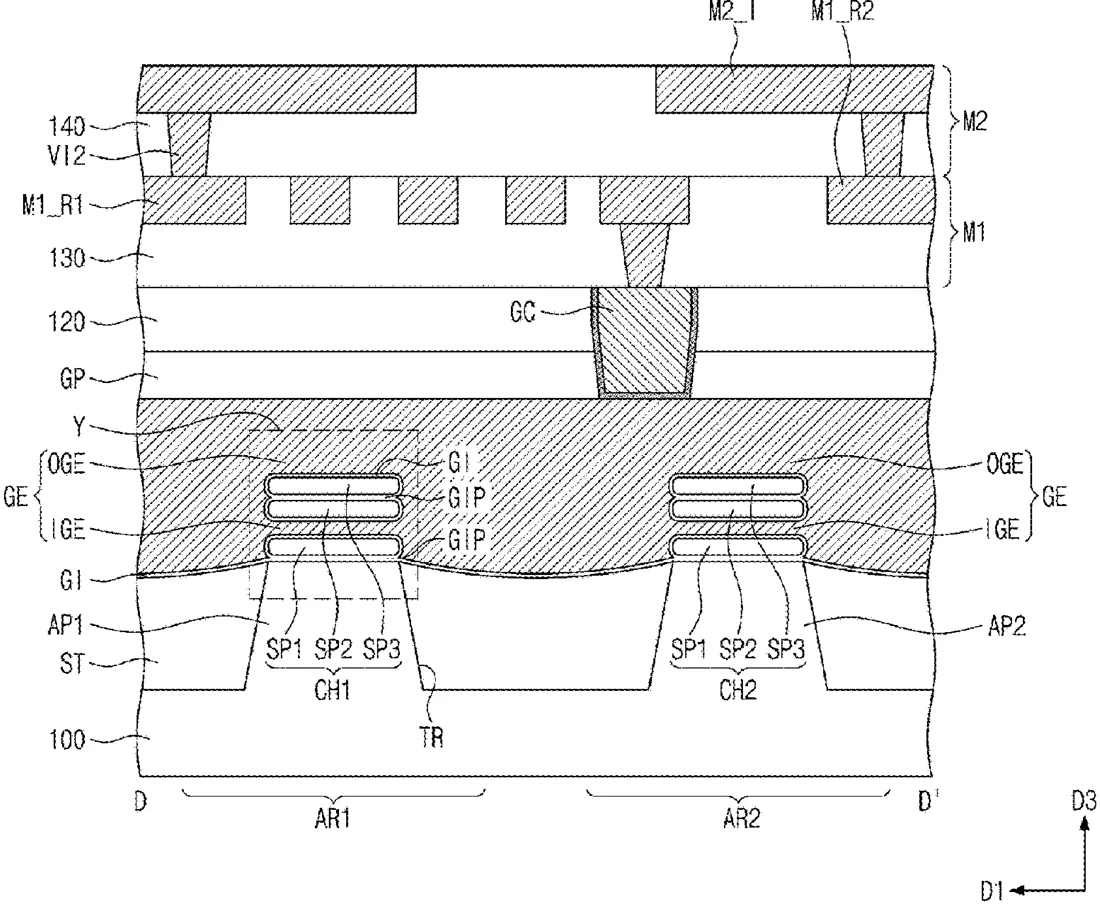

The present invention provides a semiconductor device. The semiconductor device includes a well region in a substrate, a multi-channel layer on the well region, and the multi-channel layer including first, second, and third channel layers sequentially stacked in a vertical direction and apart from one another, a first gate insulating layer between the first channel layer and the well region, and a gate electrode overlapping the multi-channel layer. The gate electrode includes a first inner electrode between the first channel layer and the second channel layer, and an outer electrode on the third channel layer. An interval between the well region and the first channel layer is less than an interval between the first channel layer and the second channel layer.
What exactly they claim (claim 1)
1. A semiconductor device, comprising: a well region in a substrate; a multi-channel layer on the well region, the multi-channel layer including first, second, and third channel layers sequentially stacked in a vertical direction and spaced apart from one another; a first gate insulating layer between the first channel layer and the well region; and a gate electrode overlapping the multi-channel layer, wherein the gate electrode comprises: an inner electrode between the first channel layer and the second channel layer; and an outer electrode on the third channel layer, and wherein an interval between the well region and the first channel layer is less than an interval between the first channel layer and the second channel layer.
Facts
- Company
- Samsung (SAMSUNG ELECTRONICS CO., LTD.)
- Official title
- SEMICONDUCTOR DEVICE HAVING DIFFERENT INTERVALS BETWEEN CHANNEL LAYERS
- Publication number
- US20260333857A1
- Application number
- 19424767
- Filed
- Dec 18, 2025
- Published
- Oct 22, 2026
- Inventors
- 4
- Claims
- 20
Classified under
H10D 84/851 Electricity & electronicsH10D 30/481 Electricity & electronicsH10D 30/503 Electricity & electronicsH10D 30/506 Electricity & electronicsH10D 62/102 Electricity & electronicsH10D 62/151 Electricity & electronicsMore from Samsung in Chips & hardware
- Samsung patents chip that combines camera and screen Oct 13, 2026
- Samsung patents faster chip testing using machine learning Sep 1, 2026
- Samsung patents radar method to pinpoint target direction more accurately Sep 1, 2026
- Samsung patents memory chip that searches data by content, not address Sep 1, 2026
- Samsung patents chip design that skips empty data to speed up AI Sep 1, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
