Samsung patents stacked memory design with new wiring path

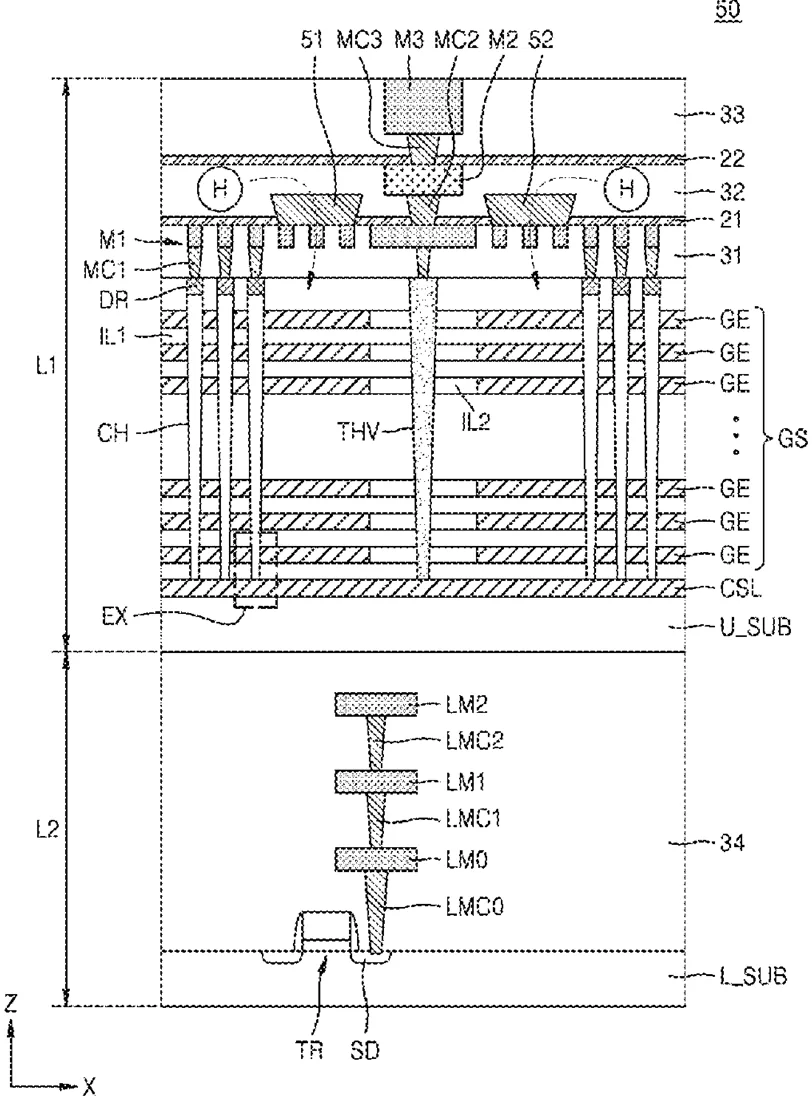

Samsung describes a non-volatile memory chip where the main storage cells are stacked vertically above a base layer. The design includes a specific wiring path, or via, that connects the lower circuitry to the storage area by passing through an insulating layer.
In the filing’s own words
A non-volatile memory device may include a memory cell region including a common source plate, a plurality of gate electrodes stacked on the common source plate in a vertical direction, and a plurality of channel structures extending in the vertical direction on the common source plate; and a peripheral circuit region overlapping the memory cell region in the vertical direction. The peripheral circuit region may include: a lower substrate, a lower insulation layer on the lower substrate, a capping layer over the lower insulation layer, and at least one via penetrating through the capping layer, and wherein at least a portion of the at least one via is disposed between the capping layer and the common source plate.
What exactly they claim (claim 1)
1. A non-volatile memory device comprising: a memory cell region including a common source plate, a plurality of gate electrodes stacked on the common source plate in a vertical direction, and a plurality of channel structures extending in the vertical direction on the common source plate; and a peripheral circuit region overlapping the memory cell region in the vertical direction, wherein the peripheral circuit region includes: a lower substrate, a lower insulation layer on the lower substrate, a capping layer over the lower insulation layer, and at least one via penetrating through the capping layer, and wherein at least a portion of the at least one via is disposed between the capping layer and the common source plate.
