Samsung patents memory layout that stacks circuitry under cells

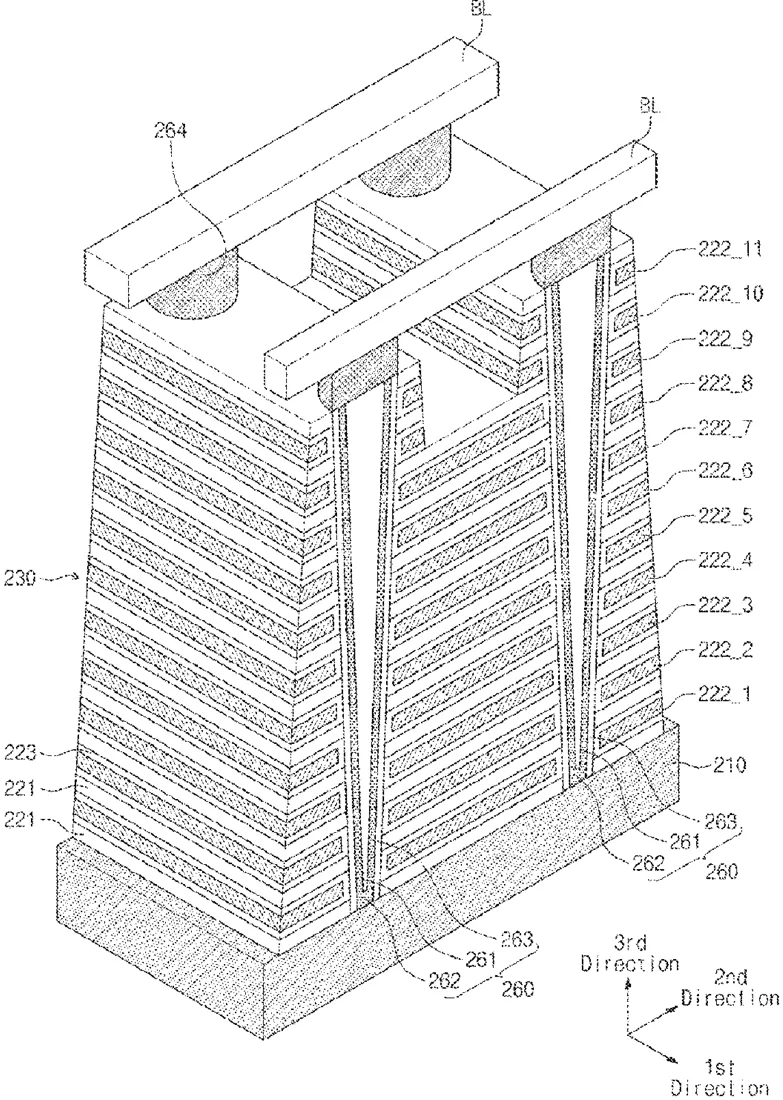

Patent drawing from the official filing.

Samsung describes a nonvolatile memory design where the main storage cells sit on top of a shared base plate and metal pads. This structure allows the surrounding control circuits to be mounted directly onto the cell area, using specific contact points to link the storage units with the logic needed to read and write data.

Why it mattersIt is interesting to engineers because this specific stacking method could help make memory chips smaller or more efficient by reducing the space needed for connections.

In the filing’s own words

A nonvolatile memory device includes; a memory cell area including a common source plate, at least one cell structure under the common source plate, and a first metal pad under the at least one cell structure, and a peripheral circuit area on which the memory cell area is mounted, including a middle area, a first edge area, and a second metal pad on the first edge area. The memory cell area further includes a first contact extending from the common source plate and connected to the first metal pad. The peripheral circuit area further includes a second contact extending from a common source line switch and connected to the second metal pad. The first metal pad contacts with the second metal pad on the second metal pad.

What exactly they claim (claim 1)

1.- 19. (canceled)

Facts

Company: Samsung (Samsung Electronics Co., Ltd.)
Official title: NONVOLATILE MEMORY DEVICE
Publication number: US20260333688A1
Application number: 19468021
Filed: Feb 3, 2026
Published: Oct 22, 2026
Inventors: 2
Claims: 21

Classified under

H10B 41/40 Electricity & electronicsG11C 16/08 Physics & computingH10B 41/20 Electricity & electronicsG11C 16/10 Physics & computingG11C 16/26 Physics & computing

Read the full filing (official PDF) ↗ Open in the Patent Tracker
