Nvidia patents robot navigation using simple flat maps

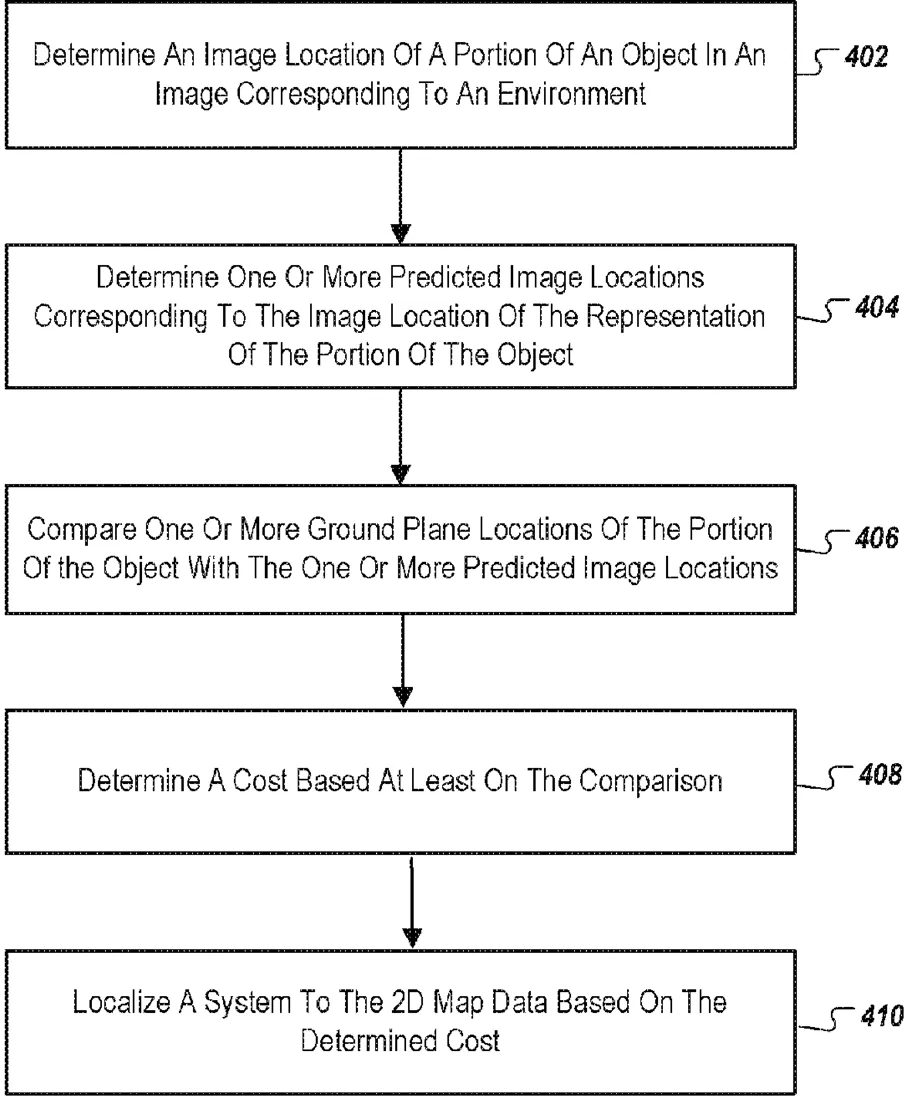

Patent drawing
Patent drawing from the official filing.

Nvidia describes a method for autonomous machines to find their location using basic two-dimensional maps instead of expensive, detailed 3D models. The system uses cameras to see the environment and projects what it sees onto a flat ground reference to match against the simple map.

Why it mattersThis approach could make self-driving vehicles and robots cheaper to deploy by reducing the need for costly, constantly updated high-definition maps.

In the filing’s own words

Autonomous machines need to know where they are to navigate safely. Traditional systems rely on expensive, detailed high-definition maps that require constant updates. This disclosure describes a more practical approach using simple two-dimensional maps that show where objects are located but that do not include height or elevation data. In particular, the ground plane is used as a reference to register camera images with the simple map. By projecting what the camera sees onto this common reference plane, the machine may match observed features against known map locations. By matching what the camera sees with what the map shows, the machine may figure out its location and navigate accordingly.

What exactly they claim (claim 1)

1. A machine comprising: one or more systems-on-a-chip (SoCs) individually comprising one or more central processing units (CPUs), one or more graphics processing units (GPUs), and one or more hardware accelerators; and one or more sensors having fields of view or sensory fields external to the machine, wherein the machine performs one or more control operations based at least on localizing the machine to a two-dimensional (2D) map of an environment, the localizing being based at least on an analysis between the 2D map and one or more estimated locations in 2D image space corresponding to one or more images of the environment, the one or more estimated locations representing one or more potential intersection points of a portion of an object with one or more ground plane locations.

Facts

Company
Nvidia (NVIDIA Corporation)
Official title
MACHINE NAVIGATION
Publication number
US20260328587A1
Application number
19654101
Filed
Apr 21, 2026
Published
Oct 22, 2026
Inventors
5
Claims
20

Classified under

G01C 21/3848 Physics & computingG01C 21/3453 Physics & computingG06T 7/536 Physics & computingG06T 7/75 Physics & computingG06V 20/56 Physics & computing
