Samsung patents Wi-Fi chip that talks on two frequencies at once

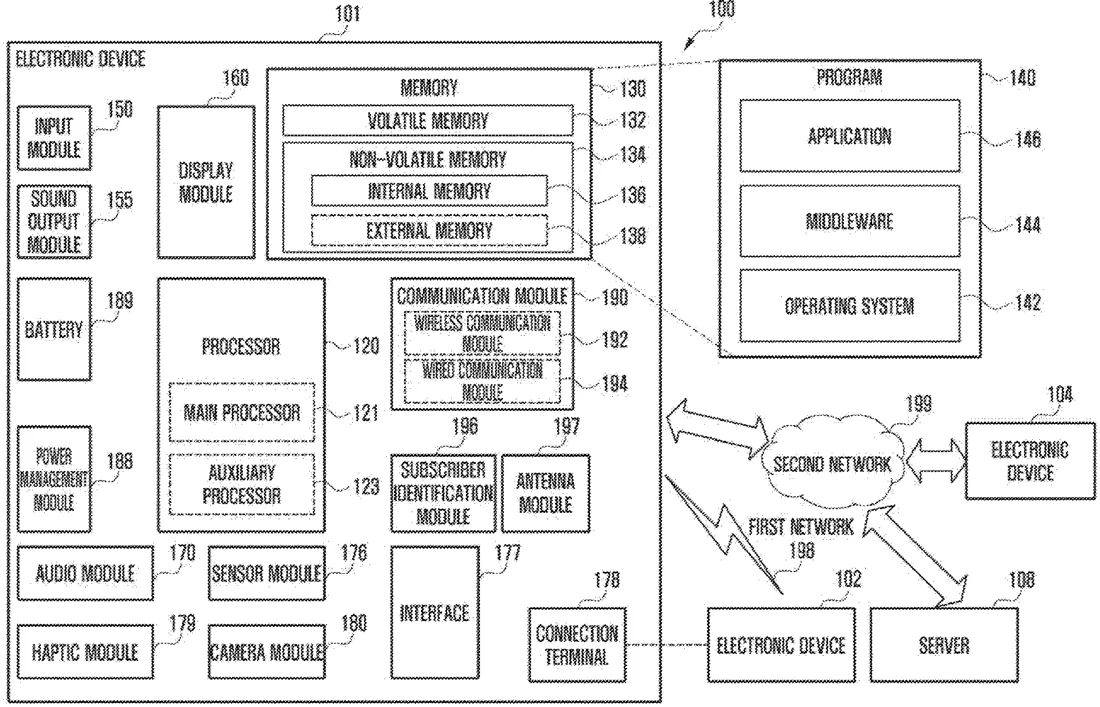

Patent drawing
Patent drawing from the official filing.

Samsung has filed a patent for an electronic device that can maintain a Wi-Fi connection using one standard while simultaneously connecting to another device using a different Wi-Fi standard. The system achieves this by using two different frequency bands, or radio channels, at the same time. This allows the device to handle multiple types of wireless traffic without stopping the first connection.

Why it mattersThis could lead to faster and more stable connections in devices that need to talk to different types of Wi-Fi networks simultaneously, such as a phone connecting to a home router while also streaming from a local server.

In the filing’s own words

An electronic device includes: communication circuitry; at least one processor comprising processing circuitry; and memory storing instructions, wherein the instructions, when executed by the at least one processor individually or collectively, cause the electronic device to: perform, via the communication circuitry, WLAN communication of a first WLAN protocol with a first external electronic device through a first channel in a first frequency band; and based on performing the WLAN communication of the first WLAN protocol with the first external electronic device, perform, via the communication circuitry, WLAN communication of a second WLAN protocol with a second external electronic device through the first channel in the first frequency band and through a second channel in a second frequency band while the performing the WLAN communication of the first WLAN protocol with the first external electronic device, wherein the second frequency band is different from the first frequency band.

What exactly they claim (claim 1)

1. An electronic device comprising: communication circuitry; at least one processor comprising processing circuitry; and memory storing instructions, wherein the instructions, when executed by the at least one processor individually or collectively, cause the electronic device to: perform, via the communication circuitry, wireless local area network (WLAN) communication of a first WLAN protocol with a first external electronic device through a first channel in a first frequency band; and based on performing the WLAN communication of the first WLAN protocol with the first external electronic device, perform, via the communication circuitry, WLAN communication of a second WLAN protocol with a second external electronic device through the first channel in the first frequency band and through a second channel in a second frequency band while the performing the WLAN communication of the first WLAN protocol with the first external electronic device, wherein the second frequency band is different from the first frequency band.

Facts

Company
Samsung (SAMSUNG ELECTRONICS CO., LTD.)
Official title
ELECTRONIC DEVICE FOR WIRELESS LAN COMMUNICATION, AND METHOD FOR OPERATING SAME
Publication number
US20260322552A1
Application number
19689561
Filed
May 27, 2026
Published
Oct 15, 2026
Inventors
2
Claims
20

Classified under

H04L 5/0048 Electricity & electronicsH04W 24/10 Electricity & electronicsH04W 48/16 Electricity & electronicsH04W 72/0446 Electricity & electronicsH04W 72/1273 Electricity & electronics
Read the full filing (official PDF) ↗ Open in the Patent Tracker
