Samsung patents 5G antenna method to improve signal sensing
Samsung describes a method for wireless devices to process signals from their antenna panels. It combines data from two different digital signals, which may come from different antenna sections or beam directions, to estimate the incoming signal and perform sensing.
In the filing’s own words
The disclosure relates to a 5G or 6G communication system for supporting a higher data transmission rate. The present disclosure relates to a method executed by a wireless communication device, the wireless communication device and a storage medium. The wireless communication device includes a receiving antenna panel, the method includes: obtaining a first digital received signal; obtaining a second digital received signal; performing estimating for a received signal and/or sensing, based on the first digital received signal and the second digital received signal.
What exactly they claim (claim 1)

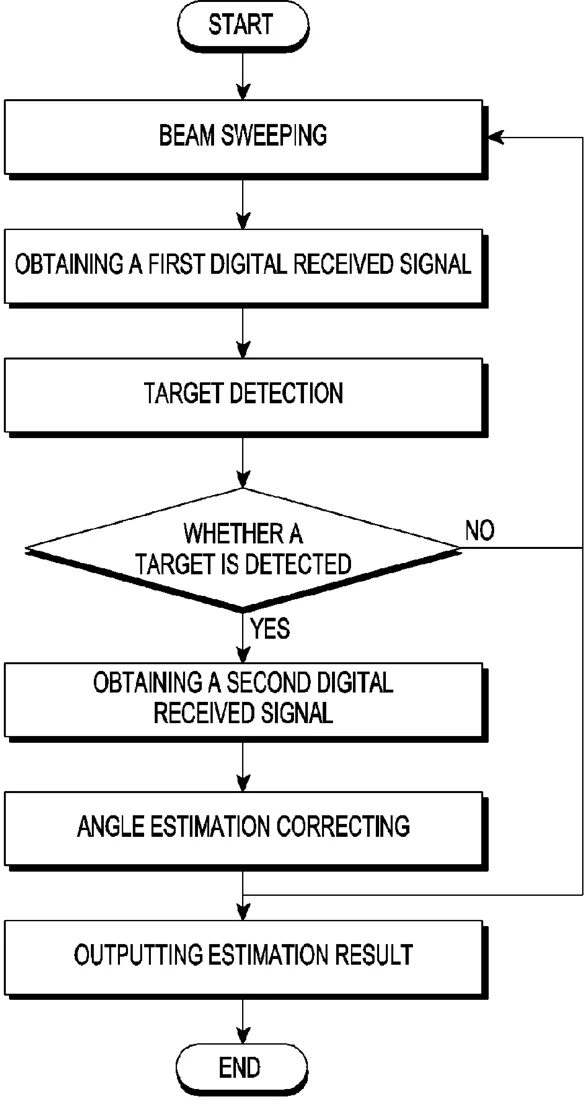

1. A method executed by a wireless communication device, wherein the wireless communication device comprises a receiving antenna panel, the method comprises: obtaining a first digital received signal; obtaining a second digital received signal; performing estimating for a received signal and sensing, based on the first digital received signal and the second digital received signal, wherein the first digital received signal is obtained by performing beam sweeping with a first received beam or is obtained based on signals received by a plurality of sub-arrays of the receiving antenna panel, the second digital received signal is obtained by performing beam sweeping with a second received beam or is obtained based on signals received by the plurality of sub-arrays of the receiving antenna panel.
Facts
- Company
- Samsung (SAMSUNG ELECTRONICS CO., LTD.)
- Official title
- METHOD EXECUTED BY A WIRELESS COMMUNICATION DEVICE, WIRELESS COMMUNICATION DEVICE AND STORAGE MEDIUM
- Publication number
- US20260322469A1
- Application number
- 19144177
- Filed
- Dec 28, 2023
- Published
- Oct 15, 2026
- Inventors
- 4
- Claims
- 15
Classified under
