Samsung patents chip package with holes to reduce stress
Samsung describes a semiconductor package design that includes empty holes, called dummy holes, in the base substrate. These holes are positioned closer to the edge than the electrical connections, which helps manage physical stress within the chip assembly.
In the filing’s own words
Provided is a semiconductor package including: a package substrate; an interposer substrate on a first surface of the package substrate; a first connection terminal between the package substrate and the interposer substrate; a first semiconductor device on the interposer substrate; and a second semiconductor device on the interposer substrate, wherein the second semiconductor device is spaced apart from the first semiconductor device in a horizontal direction, wherein the package substrate includes a first dummy hole extending in a vertical direction from the first surface of the package substrate, and wherein a distance from an edge of the package substrate adjacent to the first dummy hole is less than a distance from the edge to the first connection terminal.
What exactly they claim (claim 1)

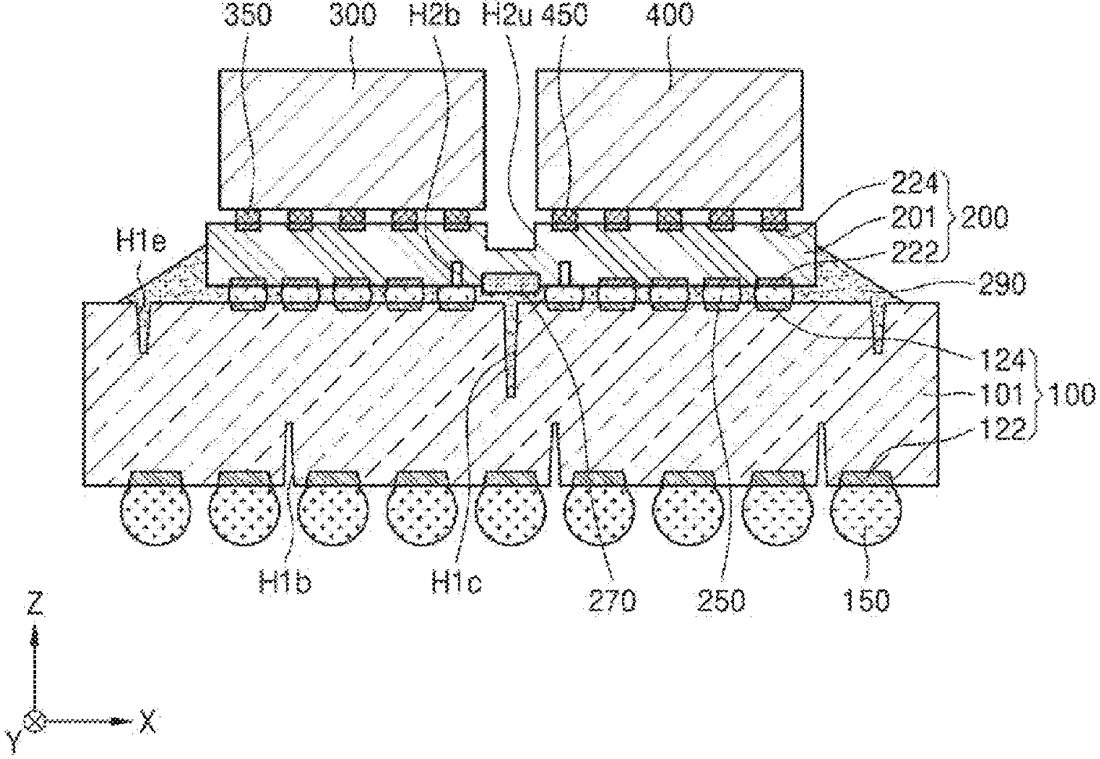

1. A semiconductor package comprising: a package substrate; an interposer substrate on a first surface of the package substrate; a first connection terminal between the package substrate and the interposer substrate; a first semiconductor device on the interposer substrate; and a second semiconductor device on the interposer substrate, wherein the second semiconductor device is spaced apart from the first semiconductor device in a horizontal direction, wherein the package substrate comprises a first dummy hole extending in a vertical direction from the first surface of the package substrate, and wherein a distance from an edge of the package substrate adjacent to the first dummy hole is less than a distance from the edge to the first connection terminal.
