Samsung patents tool that checks chips by measuring electrical resistance

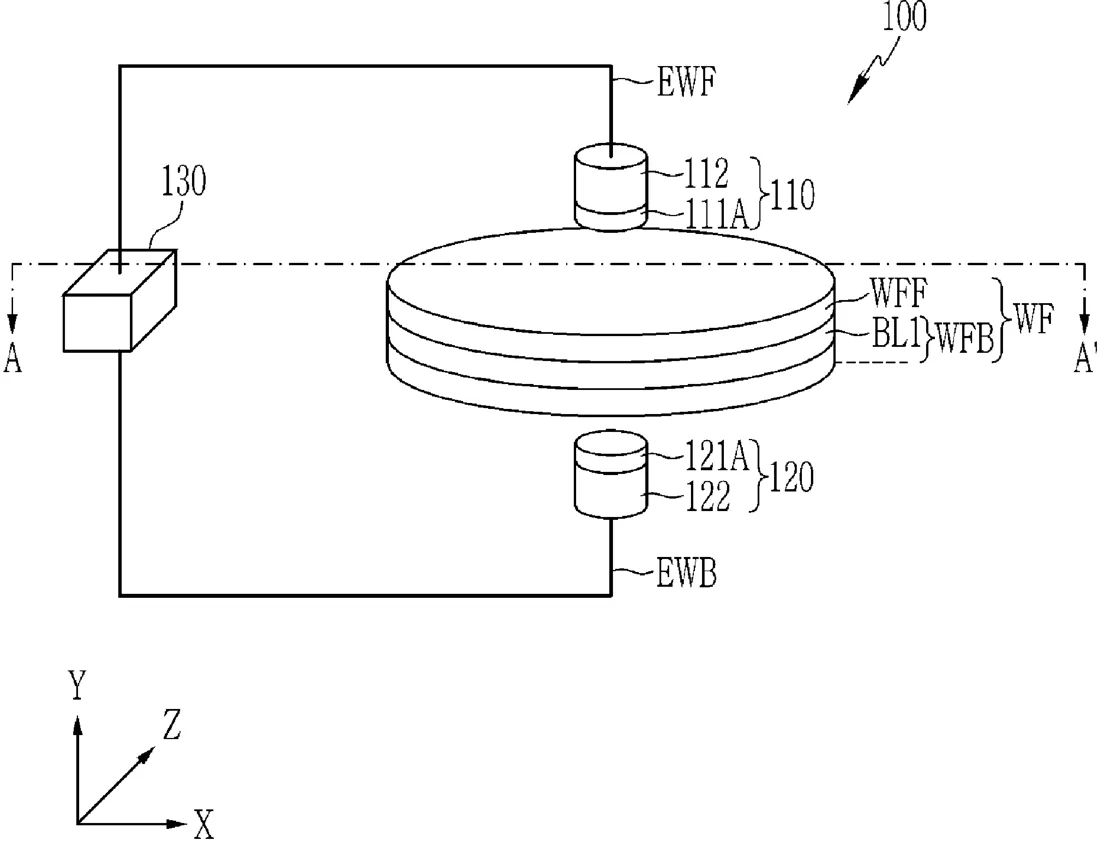

Patent drawing from the official filing.

Samsung has filed a patent for a machine that tests thin material sheets, known as substrates, used in electronics. The device places two electrical probes on opposite sides of the sheet and measures the electrical resistance, or impedance, between them to check for defects.

Why it mattersThis is a standard manufacturing quality control step that helps ensure electronic components work correctly before they are assembled into devices.

In the filing’s own words

Provided is a substrate inspection apparatus configured to inspect a substrate, the substrate inspection apparatus including a first probe on an upper portion of the substrate, a second probe on a lower portion of the substrate opposite to the first probe, the second probe being configured to have a polarity opposite to that of the first probe, and an impedance analyzer configured to measure an impedance by at least one of a current applied to the first probe and the second probe and a voltage applied to the first probe and the second probe.

What exactly they claim (claim 1)

1. A substrate inspection apparatus configured to inspect a substrate, the substrate inspection apparatus comprising: a first probe on an upper portion of the substrate; a second probe on a lower portion of the substrate opposite to the first probe, a polarity of the second probe being opposite to a polarity of the first probe; and an impedance analyzer configured to measure an impedance by at least one of a current applied to the first probe and the second probe and a voltage applied to the first probe and the second probe.

Facts

Company: Samsung (SAMSUNG ELECTRONICS CO., LTD.)
Official title: SUBSTRATE INSPECTION APPARATUS
Publication number: US20260309658A1
Application number: 19576589
Filed: Mar 24, 2026
Published: Oct 8, 2026
Inventors: 5
Claims: 20

Classified under

G01N 27/02 Physics & computing
