Samsung patents new way to build tiny metal patterns for chips

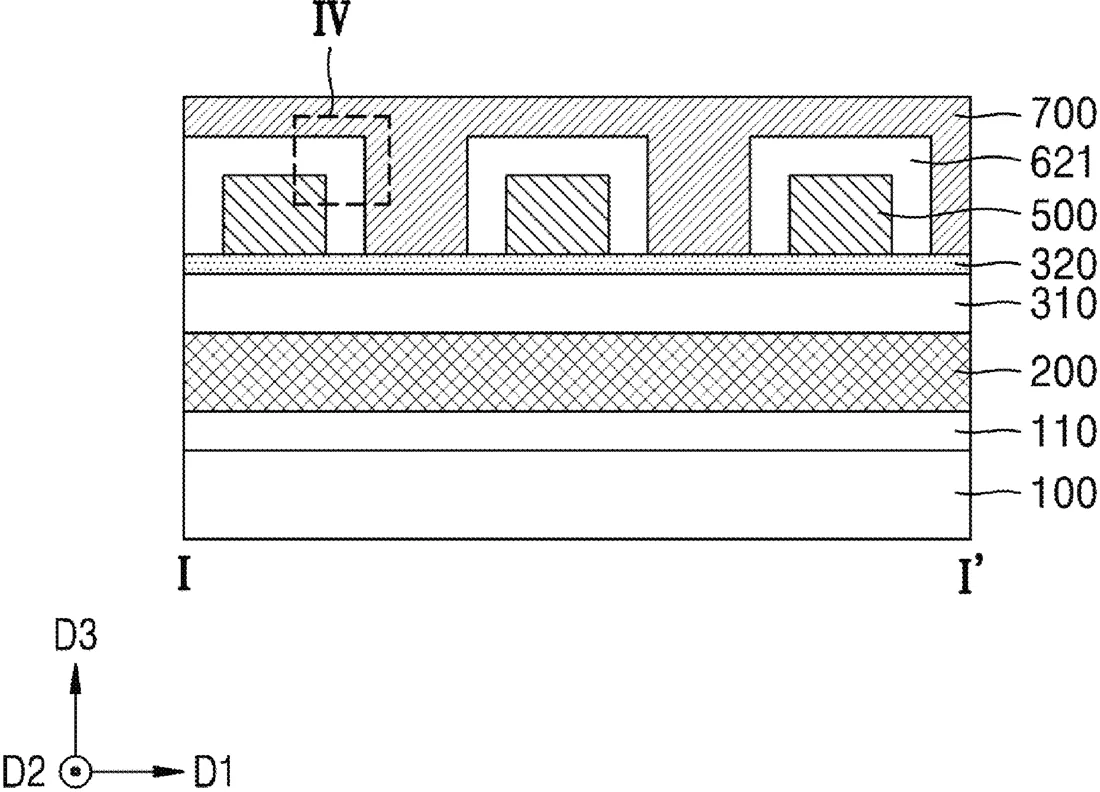

Patent drawing
Patent drawing from the official filing.

Samsung describes a method for creating precise metal oxide structures on semiconductor wafers. The process involves coating a liquid precursor onto existing patterns, hardening it into a solid layer, and then etching it back to leave metal oxide only in the gaps between the original patterns.

Why it mattersThis technique could help manufacturers create finer and more reliable connections inside computer chips, which is a standard part of the ongoing effort to make processors smaller and faster.

In the filing’s own words

A method of manufacturing a semiconductor device may include forming resist patterns on a substrate, coating a precursor on the resist patterns to form a preliminary metal oxide layer, the precursor being in a state of one of a solution, a sol, or a gel, solidifying the preliminary metal oxide layer to form a metal oxide layer, and recessing the metal oxide layer to form a metal oxide pattern exposing top surfaces of the resist patterns, wherein the resist patterns include a metal oxide, an oxygen content in the metal oxide pattern is greater than an oxygen content in the resist patterns, and the metal oxide pattern is arranged between the resist patterns.

What exactly they claim (claim 1)

1. A method of manufacturing a semiconductor device, the method comprising: forming resist patterns on a substrate; coating a precursor on the resist patterns to form a preliminary metal oxide layer, the precursor being in a state of one of a solution, a sol, or a gel; solidifying the preliminary metal oxide layer to form a metal oxide layer; and recessing the metal oxide layer to form a metal oxide pattern exposing top surfaces of the resist patterns, wherein the resist patterns comprise a metal oxide, an oxygen content in the metal oxide pattern is greater than an oxygen content in the resist patterns, and the metal oxide pattern is arranged between the resist patterns.
