Samsung patents chip layout mixing different-sized logic cells

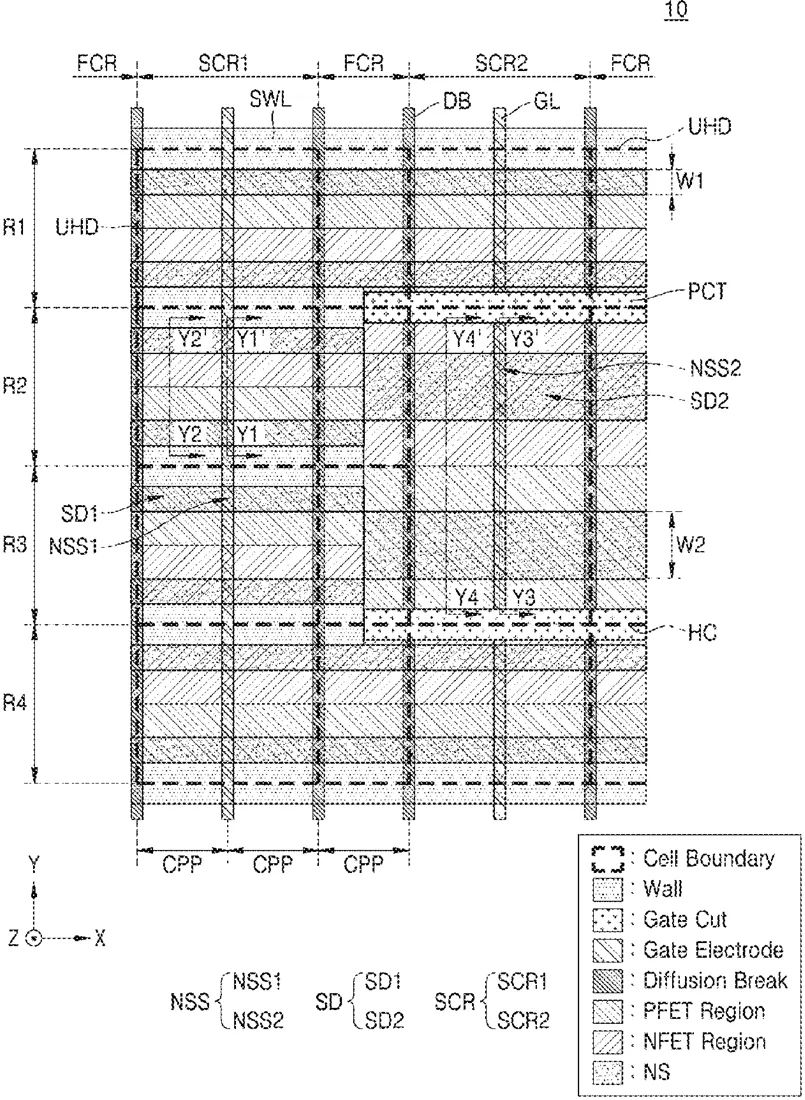

Samsung describes a design for integrated circuits that places standard-sized logic cells next to taller logic cells in adjacent regions. The filing explains how the edges of these taller cells align with the edges of the standard cells to keep the chip layout organized.
In the filing’s own words
Provided is an integrated circuit device include a first logic cell region and a second logic cell region adjacent to one another in a first horizontal direction, a plurality of first logic cells arranged in portions of the first logic cell region and the second logic cell region, each of the plurality of first logic cells having a first cell height, and at least one second logic cell arranged in the other portion of the second logic cell region and having a second cell height greater than the first cell height.
What exactly they claim (claim 1)
1. An integrated circuit device comprising: a first logic cell region and a second logic cell region adjacent to one another in a first horizontal direction; a plurality of first logic cells arranged in portions of the first logic cell region and the second logic cell region, each of plurality of first logic cells having a first cell height; and at least one second logic cell arranged in another portion of the second logic cell region and having a second cell height greater than the first cell height, wherein both ends of the at least one second logic cell in a second horizontal direction substantially orthogonal to the first horizontal direction are aligned, in the first horizontal direction, with one end of both ends in the second horizontal direction of one first logic cell arranged in the first logic cell region among the plurality of first logic cells and another end of both ends in the second horizontal direction of another first logic cell arranged in the first logic cell region among the plurality of first logic cells.
Facts
- Company
- Samsung (Samsung Electronics Co., Ltd.)
- Official title
- INTEGRATED CIRCUIT DEVICE
- Publication number
- US20260304952A1
- Application number
- 19577818
- Filed
- Mar 25, 2026
- Published
- Oct 1, 2026
- Inventors
- 5
- Claims
- 20
Classified under
H10D 84/922 Electricity & electronicsH10D 84/931 Electricity & electronicsH10D 84/953 Electricity & electronicsH10D 84/981 Electricity & electronicsH10D 89/10 Electricity & electronicsMore from Samsung in Chips & hardware
