Samsung patents stacked chips with two types of cooling pads

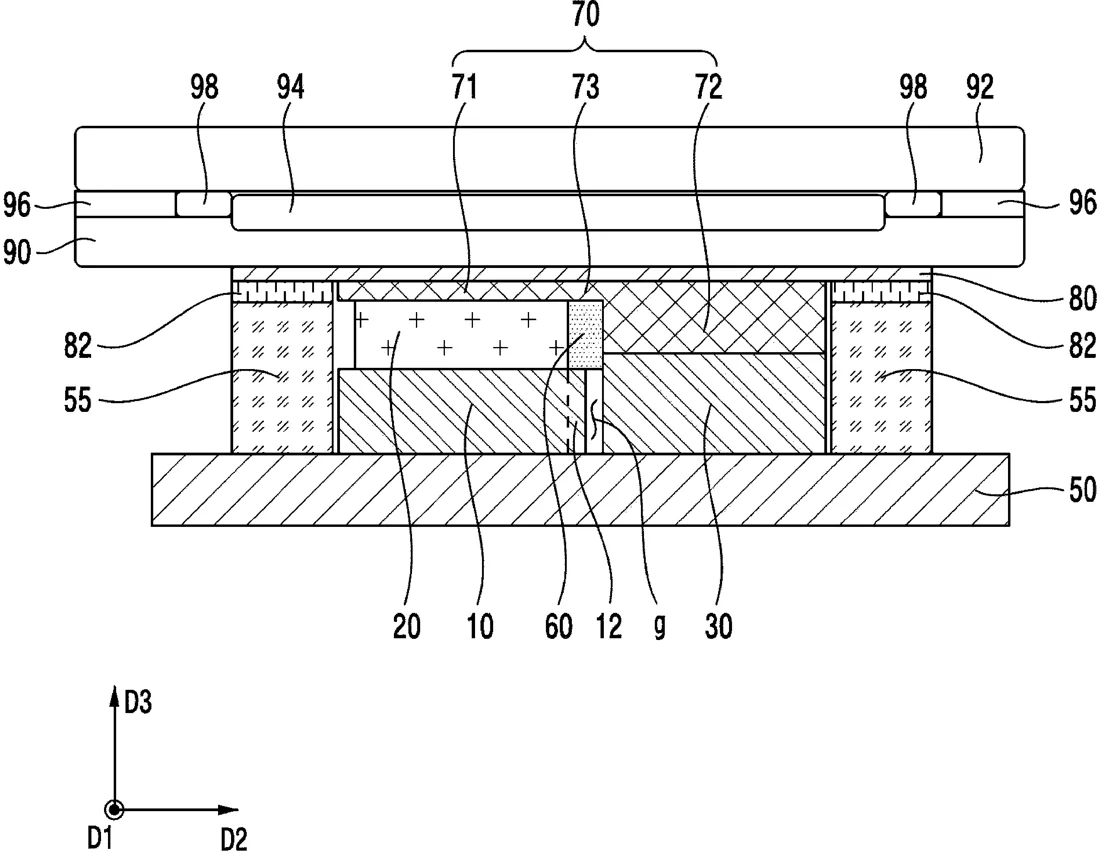

Patent drawing
Patent drawing from the official filing.

Samsung describes a design where one chip is stacked on top of another, both connected to a heat spreader. It uses two different thermal interface materials: a stiffer pad under the lower chip and a softer pad covering the upper chip to manage heat flow.

Why it mattersThis approach could help manage heat in compact devices by using materials with different physical properties to fit stacked components better.

In the filing’s own words

An electronic device including: a printed circuit board; a first package including first circuitry and disposed on the printed circuit board; a second package including second circuitry and disposed on the first package, wherein the first package includes a first portion on which the second package is disposed and a second portion; a first thermal interface material (TIM) disposed on the second portion of the first package; a second TIM disposed on the second package and the first TIM; and a heat dissipation member thermally connected to the first package and the second package through the first TIM and the second TIM, wherein the first TIM has a stiffness greater than that of the second TIM.

What exactly they claim (claim 1)

1. An electronic device comprising: a printed circuit board; a first package including first circuitry and disposed on the printed circuit board; a second package including second circuitry and disposed on the first package, wherein the first package includes a first portion on which the second package is disposed and a second portion; a first thermal interface material (TIM) disposed on the second portion of the first package; a second TIM disposed on the second package and the first TIM; and a heat dissipation member thermally connected to the first package and the second package through the first TIM and the second TIM, wherein the first TIM has a stiffness greater than that of the second TIM.
