Samsung patents converter that hides electrical hum by shifting frequency

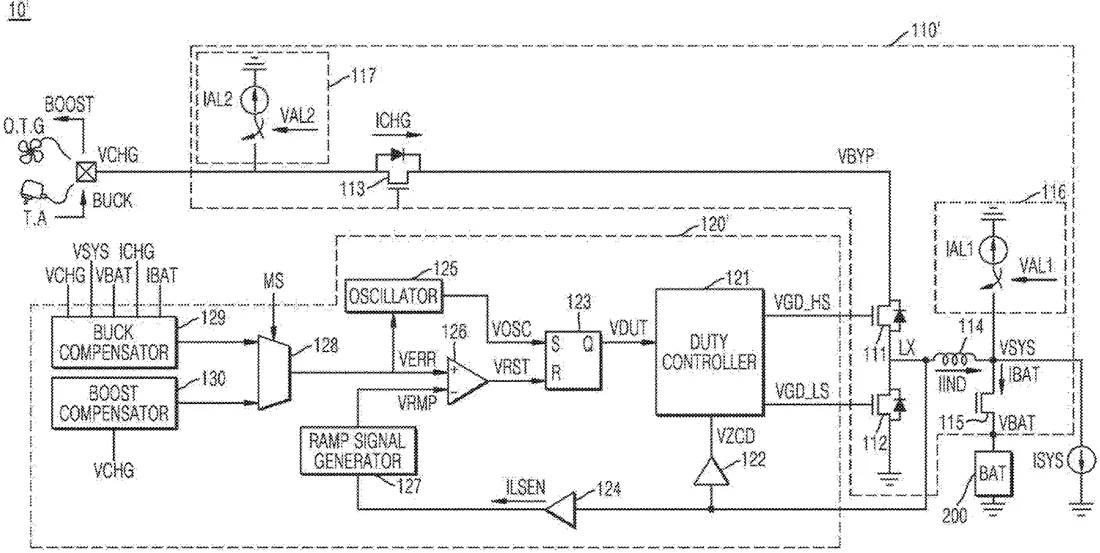

Patent drawing
Patent drawing from the official filing.

Samsung has filed a patent for a power management circuit that adjusts its operating speed to avoid making a audible buzzing sound. The system monitors the electrical load and shifts the switching frequency to a lower, inaudible range when the standard frequency would produce noise.

Why it mattersThis improves the quietness of electronic devices by preventing internal components from vibrating at frequencies humans can hear.

In the filing’s own words

A method of controlling a bidirectional switching converter including a switching node is provided. The method includes: generating a first signal having a first frequency; controlling the first frequency based on a level of a load current; generating a second signal having a second frequency; controlling the second frequency to 1/N times the first frequency, while the first frequency is within a reference frequency range, wherein N is a natural number greater than or equal to 2; controlling the second frequency to be equal to the first frequency, while the first frequency is outside the reference frequency range; and turning on a first transistor to precharge the switching node or a second transistor to discharge the switching node, based on the second signal.

What exactly they claim (claim 1)

1. A method of controlling a bidirectional switching converter including a switching node, the method comprising: generating a first signal having a first frequency; controlling the first frequency based on a level of a load current; generating a second signal having a second frequency; controlling the second frequency to 1/N times the first frequency, while the first frequency is within a reference frequency range, wherein N is a natural number greater than or equal to 2; controlling the second frequency to be equal to the first frequency, while the first frequency is outside the reference frequency range; and turning on a first transistor to precharge the switching node or a second transistor to discharge the switching node, based on the second signal.
