Samsung patents method to sync signal beams across multiple carriers

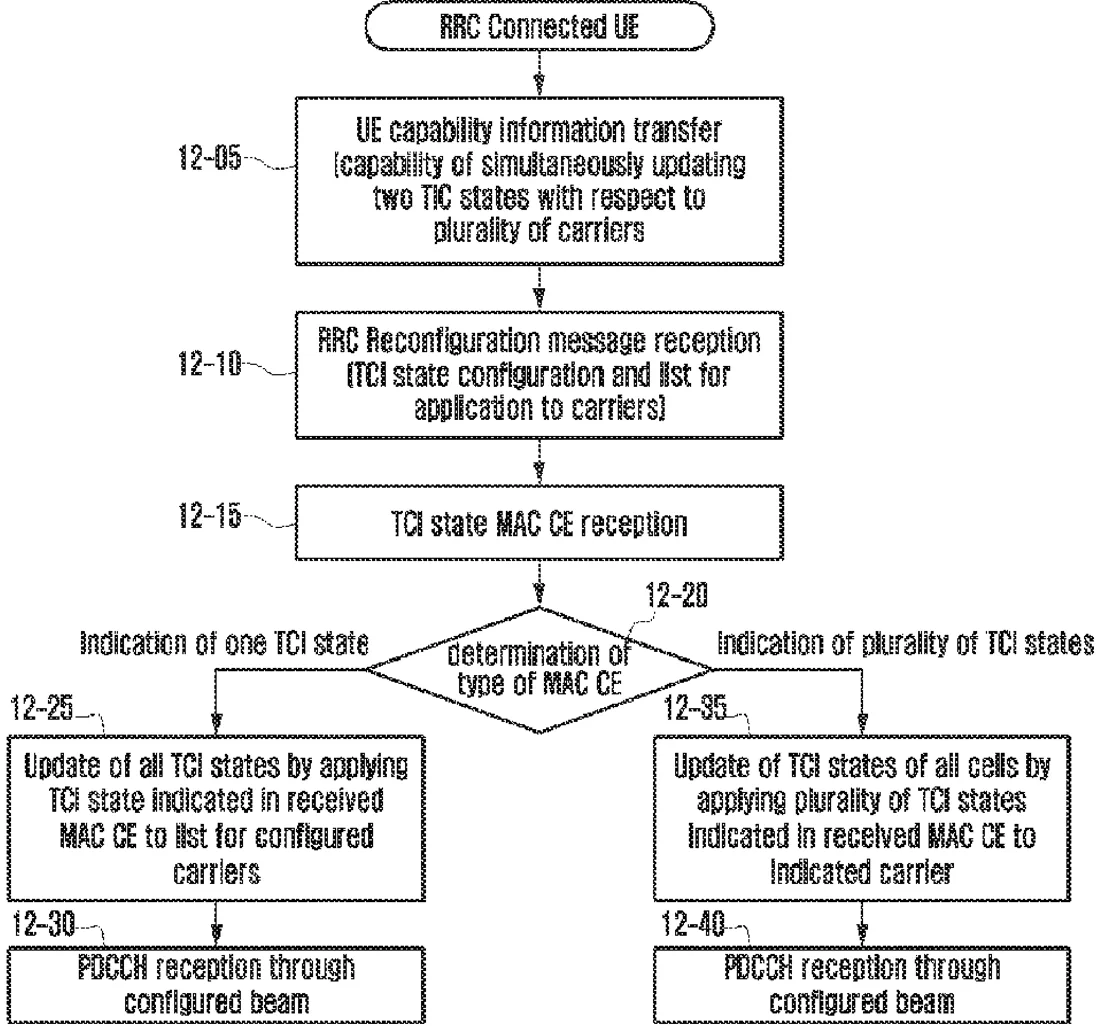

Patent drawing
Patent drawing from the official filing.

This patent describes a way for a phone to update its signal reception settings across several data channels at once. Instead of changing each channel individually, the device uses specific lists to apply the same signal direction settings to multiple carriers simultaneously.

Why it mattersIt improves how mobile devices manage complex signal connections, ensuring they stay aligned with the network efficiently when using multiple data streams.

In the filing’s own words

The present invention relates to a method and device for activating a PDCCH reception beam for multiple carriers simultaneously, on the basis of an RRC message comprising a first list and a second list which are lists of serving cells to which update of a TCI state is to be simultaneously applied, and a MAC CE comprising an identifier of the serving cells, an identifier of a CORESET, and an identifier of a TCI state.

What exactly they claim (claim 1)

1. A method performed by a terminal in a wireless communication system, the method comprising: receiving, from a base station, a radio resource control (RRC) message containing a first list and a second list that are lists for serving cells to which to apply simultaneously an update of a transmission configuration indicator (TCI) state; receiving, from the base station, a medium access control (MAC) control element (CE) containing a serving cell identifier (ID), a control resource set (CORESET) ID, and one or two TCI state IDs; based on a logical channel ID (LCID) associated with the MAC CE, identifying whether the MAC CE is a first MAC CE indicating one TCI state or a second MAC CE indicating two TCI states; in case that the MAC CE is the first MAC CE, receiving, from the base station, a physical downlink control channel (PDCCH) by applying the one TCI state to all cells in the list in which a serving cell is contained, in case where the serving cell indicated by the MAC CE is contained in the first list or the second list; and in case that the MAC CE is the second MAC CE, receiving, from the base station, the PDCCH by applying the two TCI states to all the cells in the list in which the serving cell is contained, in case where the serving cell indicated by the MAC CE is contained in the first list or the second list, wherein the first list and the second list are used both when the MAC CE is the first MAC CE and when the MAC CE is the second MAC CE.

Facts

Company
Samsung (Samsung Electronics Co., Ltd.)
Official title
Method and device for activating PDCCH reception beam for multiple carriers simultaneously in mobile communication system
Patent number
US12771519B2
Application number
18569879
Filed
Jul 6, 2022
Granted
Oct 20, 2026
Inventors
1
Claims
15

Classified under

H04L 5/0098 Electricity & electronicsH04L 5/0053 Electricity & electronicsH04W 72/23 Electricity & electronics
