Samsung patents memory system that adjusts address sizes for faster data access
This patent describes a memory system where the main processor sends data requests using large address blocks, but the memory device converts them into smaller, more precise blocks before accessing the actual storage cells. This two-step translation process allows the system to manage memory space more efficiently by using different page sizes at different stages.
In the filing’s own words
A memory system includes a host and a memory device. The host is configured to translate a virtual address into first physical address based on a first page size and issue a memory access request including the first physical address. The memory device is configured to receive the memory access request from the host, translate the first physical address into a second physical address based on a second page size that is smaller than the first page size in response to the memory request, and access memory cells using the second physical address.
What exactly they claim (claim 1)

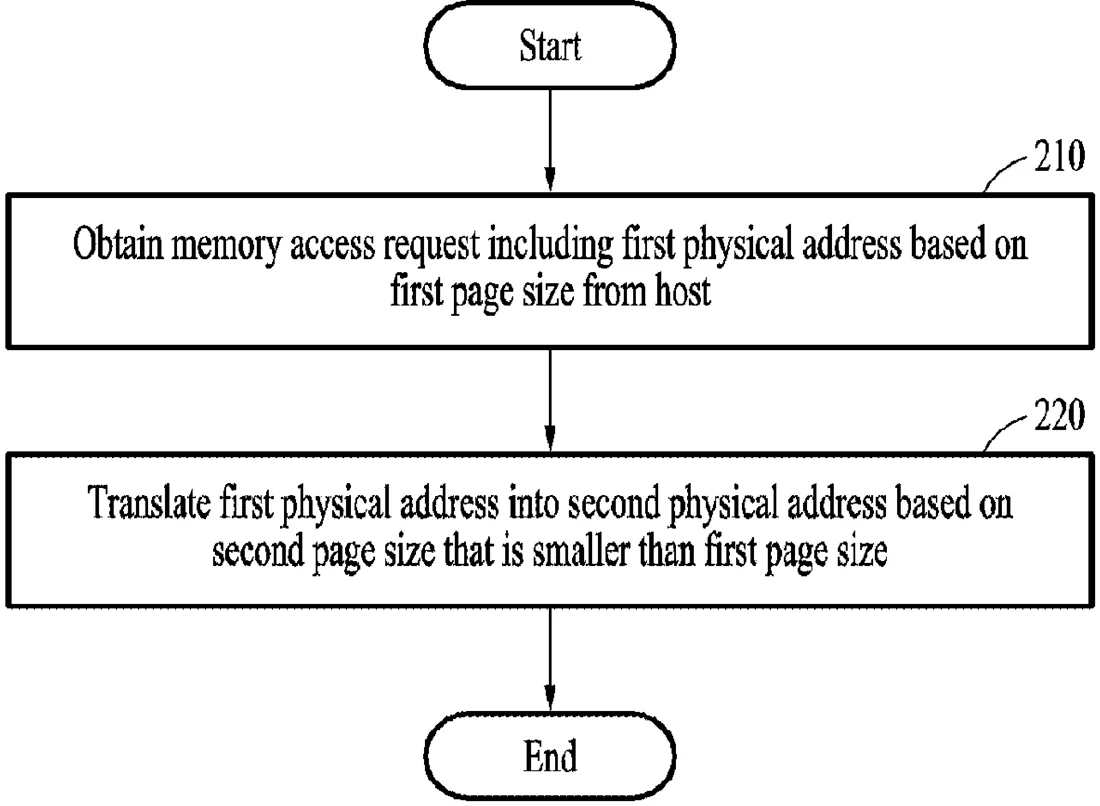

1. A memory device comprising: a memory processing unit configured to receive a memory access request including a first physical memory address based on a first page size from a host, translate the first physical address based on the first page size into a second physical address based on a second page size that is smaller than the first page size, and access memory cells of the memory device using the second physical address.
Facts
- Company
- Samsung (SAMSUNG ELECTRONICS CO., LTD.)
- Official title
- Memory device and system for performing address translation using multiple page sizes
- Patent number
- US12769670B2
- Application number
- 18969835
- Filed
- Dec 5, 2024
- Granted
- Oct 20, 2026
- Inventors
- 3
- Claims
- 20
Classified under
G06F 12/1027 Physics & computingG06F 12/1009 Physics & computingMore from Samsung in Chips & hardware
- Samsung patents chip that combines camera and screen Oct 13, 2026
- Samsung patents faster chip testing using machine learning Sep 1, 2026
- Samsung patents radar method to pinpoint target direction more accurately Sep 1, 2026
- Samsung patents memory chip that searches data by content, not address Sep 1, 2026
- Samsung patents chip design that skips empty data to speed up AI Sep 1, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
