Samsung patents method for switching 5G backhaul nodes between towers
This patent describes a method for managing how 5G network nodes that handle both user data and backhaul traffic switch to a new tower. The system categorizes connected devices into two groups to determine if they need to switch within the same tower or move to a different tower entirely.
In the filing’s own words
The present disclosure relates to a communication system for supporting a high data transfer rate. An embodiment of the present disclosure provides a method, performed by a first gNodeB (gNB)-central unit (CU), of supporting an integrated access and backhaul (IAB) node in performing handover to a second gNB-CU in a wireless communication system. The method includes transmitting handover information to at least one lower node connected to the IAB node, the handover information being determined based on a measurement report for handover of the IAB node, transmitting a handover request message including the handover information of the IAB node to the second gNB-CU, receiving context information from the at least one lower node, based on the context information, identifying, as a first class, a lower node to perform intra-CU handover, and identifying, as a second class, a lower node to perform inter-CU handover from among the at least one lower node, supporting intra-CU handover of the lower node identified as the first class, and supporting inter-CU handover of the IAB node to the second gNB-CU, based on the handover information of the IAB node and a handover acceptance message of the IAB node which is received from the second gNB-CU.
What exactly they claim (claim 1)

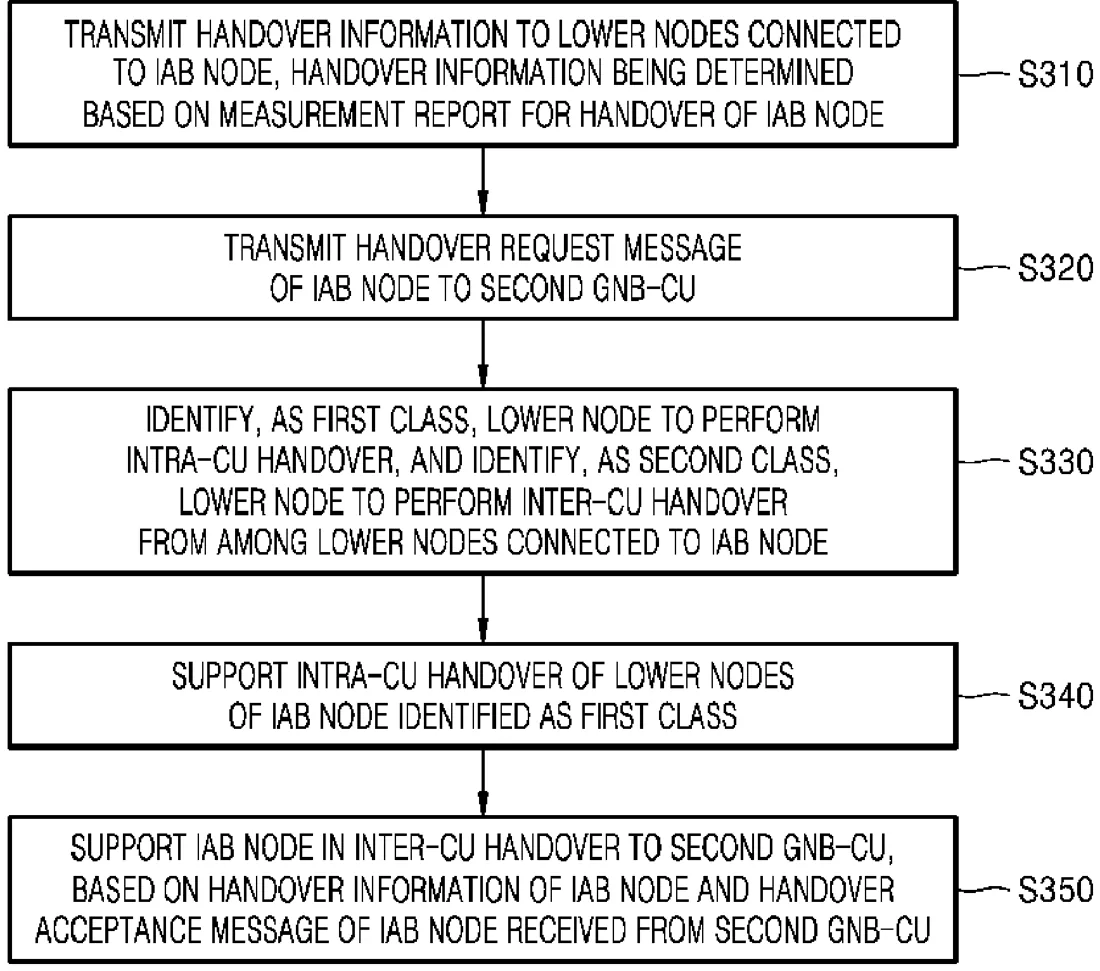

1. A method, performed by a first gNodeB (gNB)-central unit (CU), of supporting an integrated access and backhaul (IAB) node in performing handover to a second gNB-CU in a wireless communication system, the method comprising: transmitting handover information to at least one lower node connected to the IAB node, the handover information being determined based on a measurement report for handover of the IAB node; transmitting a handover request message comprising the handover information of the IAB node to the second gNB-CU; receiving context information from the at least one lower node; based on the context information, identifying, as a first class, a lower node to perform intra-CU handover, and identifying, as a second class, a lower node to perform inter-CU handover from among the at least one lower node; supporting intra-CU handover of the lower node identified as the first class; and supporting inter-CU handover of the IAB node to the second gNB-CU, based on the handover information of the IAB node and a handover acceptance message of the IAB node which is received from the second gNB-CU.
Facts
- Company
- Samsung (Samsung Electronics Co., Ltd.)
- Official title
- Method and apparatus for inter-central unit (CU) handover of integrated access and backhaul (IAB) node in wireless communication system
- Patent number
- US12764614B2
- Application number
- 18696496
- Filed
- Sep 29, 2022
- Granted
- Oct 13, 2026
- Inventors
- 4
- Claims
- 14
Classified under
H04W 36/0058 Electricity & electronicsH04W 76/19 Electricity & electronicsMore from Samsung in Networks & wireless
- Samsung patents UWB method to save power while tracking distance Sep 1, 2026
- Samsung patents system to keep satellite calls connected as satellites move Sep 1, 2026
- Samsung patents low-power IoT tags that reply without precise clocks Sep 1, 2026
- Samsung patents phone feature that switches networks to fix slow connections Sep 1, 2026
- Samsung patents satellite phone method for switching between signal types Sep 1, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
