Microsoft patents method to match data records using tokens and web searches
This patent describes a system that cleans up messy data by breaking records into small pieces called tokens to see if they refer to the same thing. If the system is unsure if two records match, it sends those tokens to a web search engine to find extra information that helps confirm the connection.
In the filing’s own words

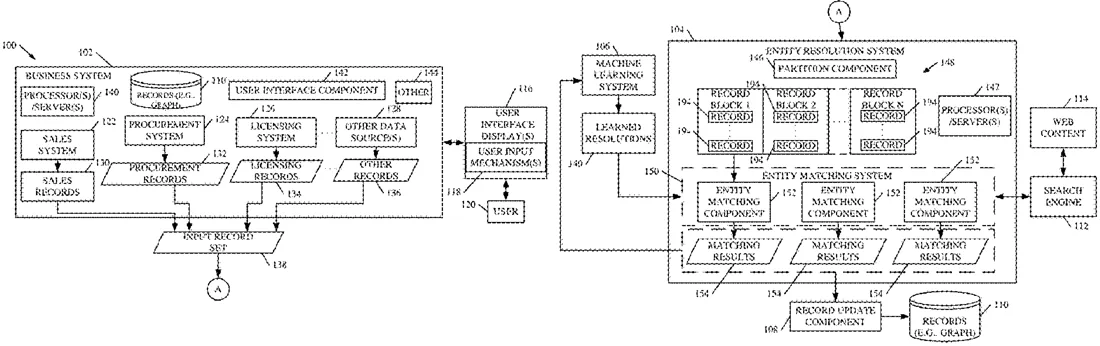

A pair of records is tokenized to form a normalized representation of an entity represented by each record. The tokens are correlated to a machine learning system by determining whether a learned resolution already exists for the two entities. If not, the normalized records are compared to generate a comparison measure to determine whether the records match. The normalized records can also be used to perform a web search and web search results can be normalized and used as additional records for matching. When a match is found, the records are updated to indicate that they match, and the match is provided to the machine learning system to update the learned resolutions.
What exactly they claim (claim 1)
1. A computer-implemented method performed by a computing system comprising one or more processors, memory, a partition component, a tokenization component, a vector generator, a threshold component, and a weighting component, the method comprising: obtaining, by the computing system, a plurality of records from different data sources, each record including an item identifier that identifies an item that is described by the record and an attribute that relates to the item; partitioning, by the partition component, the plurality of records into a plurality of record blocks based on partition criteria including at least attribute similarity; for each record block, processing, by the tokenization component, attribute data of each record to generate normalized entity tokens corresponding to the attributes of the record; selecting, within a record block, a first record and a second record; generating, by the vector generator, a similarity vector comprising a plurality of attribute-level similarity scores based on the entity tokens of the first and second records, wherein the similarity vector comprises attribute-level similarity scores generated across a plurality of attributes of the records; determining, by a threshold component, whether a similarity measure derived from the similarity vector satisfies a threshold value; responsive to the similarity measure not satisfying the threshold value: applying, by the weighting component, machine-learned attribute weights to generate a weighted similarity measure; and determining the match result based on at least one of the similarity measure or the weighted similarity measure; responsive to the match result indicating that the first and second records do not describe the same item; transmitting, by the computing system, at least one of the entity tokens generated from the normalized representation of at least one of the first and second records of a particular record block to a search engine as a search input; receiving search results; incorporating the search results into the particular record block from which the entity tokens were generated; repeating the generating of the similarity vector, determining whether the similarity measure satisfies the threshold value, and determining the match result using the particular record block including the incorporated search results to determine an updated match result based on the incorporated search results; and determining, by the computing system, whether the first and second records correspond to a same entity based on the updated match result.
Facts
- Company
- Microsoft (Microsoft Technology Licensing, LLC)
- Official title
- Entity resolution incorporating data from various data sources which uses tokens and normalizes records
- Patent number
- US12755188B2
- Application number
- 17829867
- Filed
- Jun 1, 2022
- Granted
- Oct 6, 2026
- Inventors
- 2
- Claims
- 20
Classified under
G06N 20/00 Physics & computingG06F 16/215 Physics & computingG06F 16/334 Physics & computingG06F 16/951 Physics & computingG06F 17/16 Physics & computingG06F 40/284 Physics & computingMore from Microsoft in AI & software
