Samsung patents memory system that reports its own speed and size
This patent describes a storage device with two controllers that work together to manage data flow. One controller handles network connections using a specific data-sharing rule, while the other manages the actual memory chips. The device also includes a module that calculates its own speed, size, and response time to share this information with other computers.
In the filing’s own words

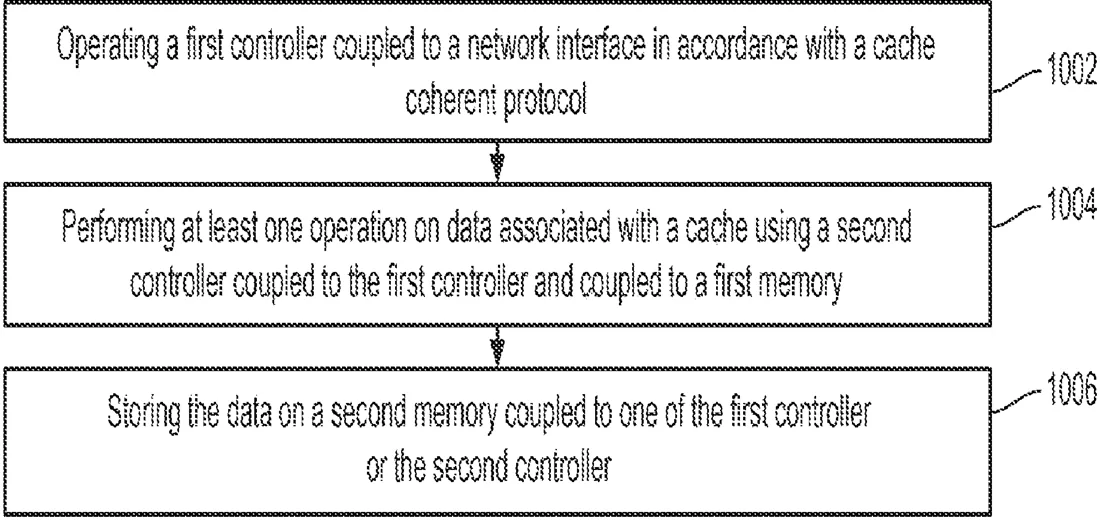

Provided are systems, methods, and apparatuses for providing a storage resource. The method can include: operating a first controller coupled to a network interface in accordance with a cache coherent protocol; performing at least one operation on data associated with a cache using a second controller coupled to the first controller and coupled to a first memory; and storing the data on a second memory coupled to one of the first controller or the second controller.
What exactly they claim (claim 1)
1. A device for providing a storage resource, the device comprising: a first controller coupled to a network interface, wherein the first controller is operable with a cache coherent protocol; a second controller coupled to the first controller and coupled to a first memory, the second controller performing at least one operation associated with a cache of the device; a second memory coupled to at least one of the first controller or the second controller; and a module that is configured to: determine at least one capability associated with the device, the at least one capability corresponding to profile information defining a relationship between capacity value, a bandwidth value, and a latency value; and transmit the at least one capability to another device.
Facts
- Company
- Samsung (Samsung Electronics Co., Ltd.)
- Official title
- Systems and methods for scalable and coherent memory devices
- Patent number
- US12754840B2
- Application number
- 17246448
- Filed
- Apr 30, 2021
- Granted
- Oct 6, 2026
- Inventors
- 3
- Claims
- 20
Classified under
G06F 12/0646 Physics & computingG06F 9/30047 Physics & computingG06F 9/44505 Physics & computingG06F 12/0891 Physics & computingG06F 13/1668 Physics & computingG06F 13/4234 Physics & computingMore from Samsung in Chips & hardware
- Samsung patents chip that combines camera and screen Oct 13, 2026
- Samsung patents faster chip testing using machine learning Sep 1, 2026
- Samsung patents radar method to pinpoint target direction more accurately Sep 1, 2026
- Samsung patents memory chip that searches data by content, not address Sep 1, 2026
- Samsung patents chip design that skips empty data to speed up AI Sep 1, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
