Samsung patents method to estimate battery parameters from electrode material

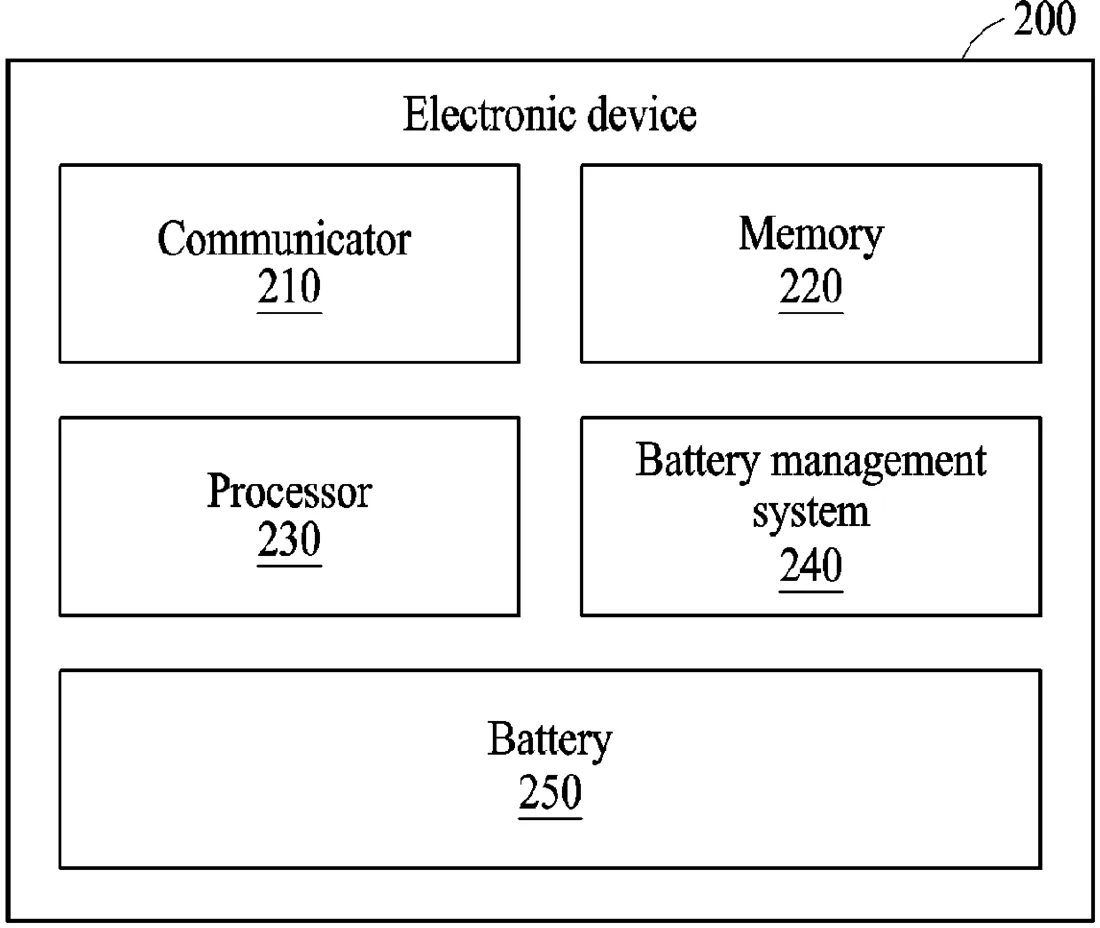

Patent drawing
Patent drawing from the official filing.

Samsung has been granted a patent for a method that estimates battery parameters by checking if the diffusion length of an intercalation material in an electrode is below a certain threshold. The processor then calculates the material's concentration and uses that to estimate battery details like charging or discharging states.

Why it mattersThis could help electronic devices manage their batteries more precisely by tracking internal material concentrations to control charging and detect issues like short circuits.

In the filing’s own words

Methods and an electronic devices for estimating battery parameters, where the method of estimating battery parameters performed by a processor includes determining whether a diffusion length of an intercalation material in an electrode of a battery is lesser than a threshold, calculating a concentration of the intercalation material in the electrode based on a result of the determination, and estimating at least one battery parameter of the battery parameters based on the concentration of the intercalation material.

What exactly they claim (claim 1)

1. A method of estimating battery parameters performed by a processor, the method comprising: determining whether a diffusion length of an intercalation material in an electrode of a battery is lesser than a threshold; calculating a concentration of the intercalation material in the electrode based on a result of the determination; estimating at least one battery parameter of the battery parameters based on the concentration of the intercalation material; and controlling at least one of charging of the battery, discharging of the battery, or detection of short circuits of the battery based on the estimated at least one battery parameter.

Facts

Company
Samsung (SAMSUNG ELECTRONICS CO., LTD.)
Official title
Method and apparatus with battery parameters determination
Patent number
US12754243B2
Application number
18319116
Filed
May 17, 2023
Granted
Oct 6, 2026
Inventors
2
Claims
20

Classified under

G01R 31/367 Physics & computingG01R 31/388 Physics & computingG01R 31/392 Physics & computing
