Samsung patents ceiling air cleaner with easy-swap filter lock

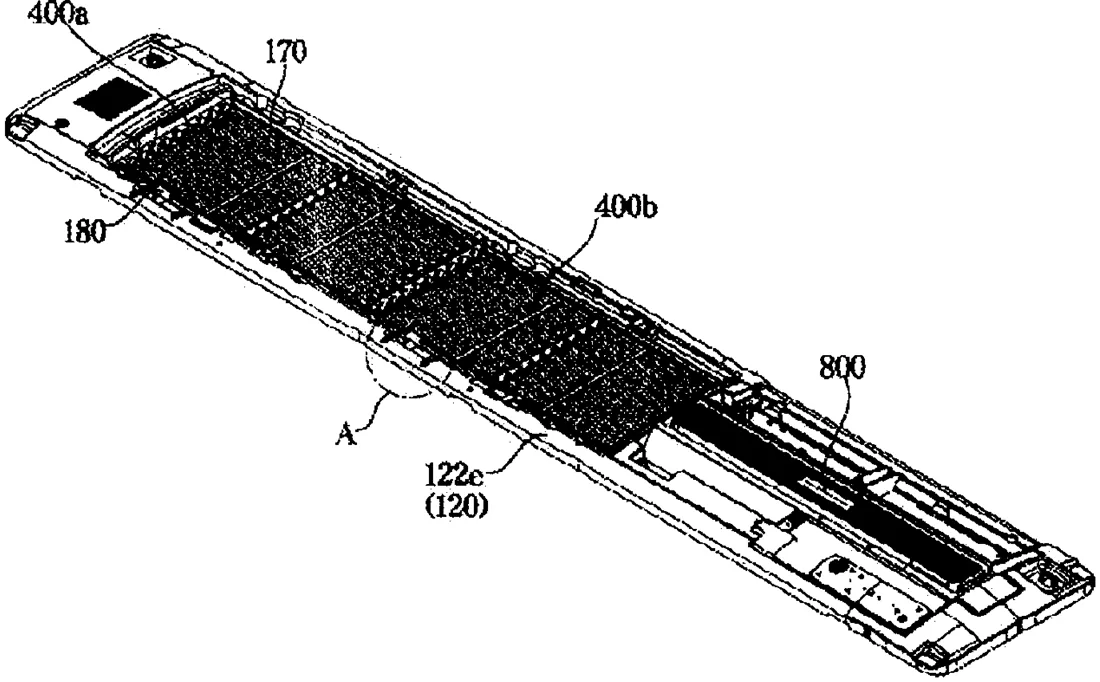

Patent drawing
Patent drawing from the official filing.

Samsung has secured a patent for a ceiling-mounted air purifier that uses a mechanical locking system to hold the filter in place. The design features a sliding component inside the frame that rotates a link to secure or release the filter, allowing for easier maintenance without tools.

Why it mattersThis improves the convenience of maintaining home air purifiers by simplifying how users replace filters.

In the filing’s own words

A ceiling type air cleaner comprises a housing comprising an opening arranged on a lower side of the housing; a filter arranged on a side of the opening; and an edge plate arranged on the lower side of the housing to support the filter and comprising a locking portion configured to lock the filter to the housing and unlock the filter from the housing. The locking portion comprises a space portion forming a space inside the edge plate; a sliding member configured to slide along the space portion; a fitting member configured to allow the sliding member to be fixed to or released from the space portion so as to allow the sliding member to slide; and a link configured to rotate according to the sliding of the sliding member so as to lock the filter to the housing or unlock the filter from the housing.

What exactly they claim (claim 1)

1. A ceiling type air cleaner, comprising: a housing comprising an opening arranged on a lower side of the housing; a filter arranged on a side of the opening; and an edge plate arranged on the lower side of the housing to support the filter and comprising a locking portion configured to lock the filter to the housing and unlocked the filter from the housing, wherein the locking portion comprises: a space portion forming a space inside the edge plate; a sliding member configured to slide along the space portion; and a link configured to rotate when the sliding member moves, wherein rotating in a first direction causes a portion of the link to overlap the filter and locks the filter to the housing and rotating in a second direction causes the portion of the link to not overlap the filter and unlocks the filter from the housing.

Facts

Company
Samsung (Samsung Electronics Co., Ltd.)
Official title
Ceiling type air cleaner
Patent number
US12753946B2
Application number
18191771
Filed
Mar 28, 2023
Granted
Oct 6, 2026
Inventors
5
Claims
18

Classified under

F24F 13/085 Mechanical engineeringF24F 1/0047 Mechanical engineeringF24F 13/20 Mechanical engineering
Read the full filing (official PDF) ↗ Open in the Patent Tracker

More from Samsung in Chips & hardware

Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
