Samsung patents chip controller that adjusts power based on system resonance
Samsung has received a patent for a controller that manages the voltage and speed of a computer chip. It calculates a specific 'resonance frequency' by analyzing how the chip's power system reacts to changes, then uses this data to fine-tune power delivery in a closed loop.
In the filing’s own words

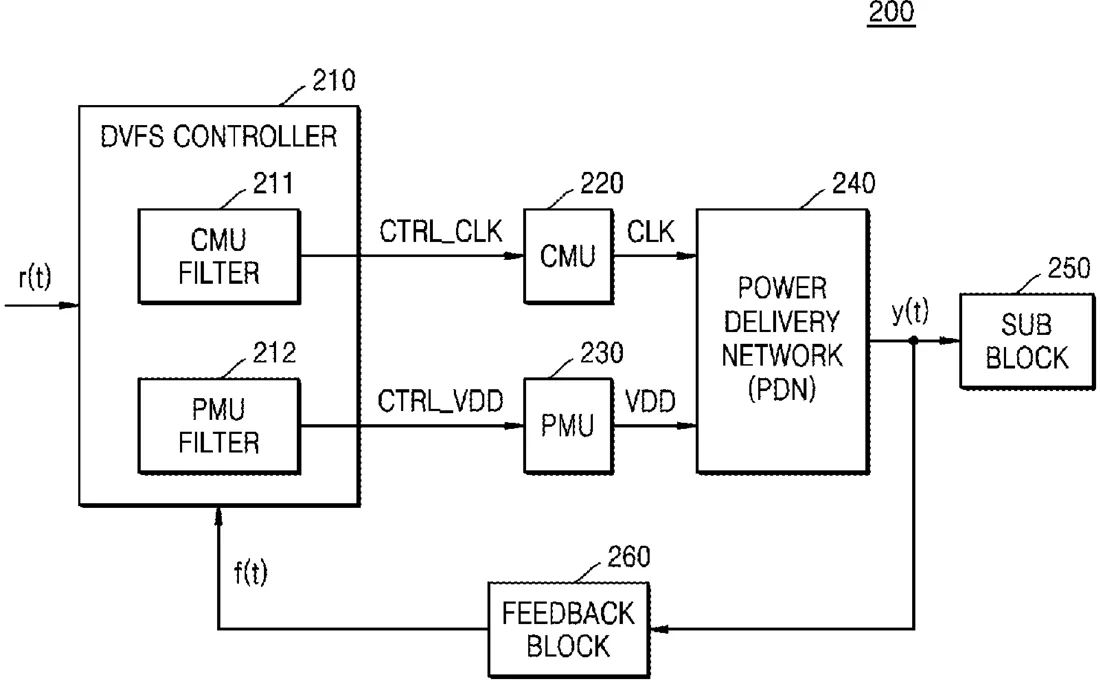

A Dynamic Voltage and Frequency Scaling (DVFS) controller, an integrated circuit including DVFS, and a method of operating the DVFS controller are provided. The integrated circuit includes at least one subblock circuit configured to process an instruction, and a DVFS controller configured to control a power management unit (PMU) and a clock management unit (CMU) to control an operating voltage and an operating frequency, respectively, based on a resonance frequency calculated from a frequency response resulting from dynamic characteristics of an entire power system including the PMU, a power delivery network (PDN), and the subblock circuit.
What exactly they claim (claim 1)
1. An integrated circuit, comprising: at least one subblock circuit configured to process an instruction; and a dynamic voltage and frequency scaling (DVFS) controller configured to control a power management unit (PMU) and a clock management unit (CMU) to control an operating voltage and an operating frequency, respectively, based on a resonance frequency calculated from a frequency response resulting from dynamic characteristics of an entire power system, the entire power system including the PMU, a power delivery network (PDN), and the at least one subblock circuit, wherein the DVFS controller is configured to perform a closed-loop control operation of the PMU and CMU to control the operating voltage and the operating frequency, respectively, based on the resonance frequency.
Facts
- Company
- Samsung (Samsung Electronics Co., Ltd.)
- Official title
- Dynamic voltage and frequency scaling (DVFS) controller, integrated circuit including the DVFS controller, and method of operating the DVFS controller
- Patent number
- US12748480B2
- Application number
- 18749071
- Filed
- Jun 20, 2024
- Granted
- Sep 29, 2026
- Inventors
- 5
- Claims
- 20
Classified under
G06F 1/324 Physics & computingMore from Samsung in Chips & hardware
- Samsung patents chip that combines camera and screen Oct 13, 2026
- Samsung patents faster chip testing using machine learning Sep 1, 2026
- Samsung patents radar method to pinpoint target direction more accurately Sep 1, 2026
- Samsung patents memory chip that searches data by content, not address Sep 1, 2026
- Samsung patents chip design that skips empty data to speed up AI Sep 1, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
