Nvidia patents method to check if different sorting chips produce same results
Nvidia describes a system for verifying that two different hardware designs for sorting data produce identical outputs. Instead of checking every internal step, the method uses mathematical rules to define what correct sorted output looks like and compares the final results of both designs.
In the filing’s own words

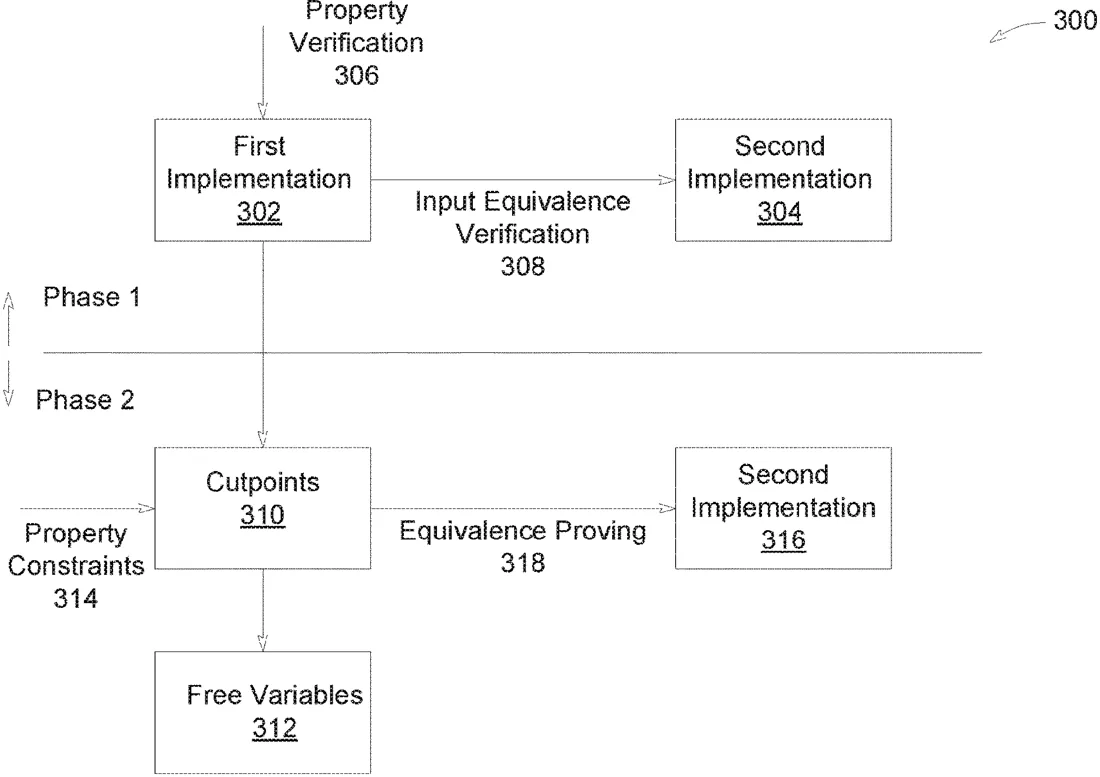

Apparatuses, systems, and techniques for formal verification of computational agents using output specification constraints are disclosed herein, for example in the context of formal verification of sorting hardware components using property-based abstraction methodologies. A hardware verification system can define abstraction properties that uniquely characterize outputs of sorting algorithms and prove equivalence between algorithmically distinct sorting implementations using a formal equivalence checking tool. Constraint application nodes can introduce symbolic placeholder variables at sorting outputs, where the symbolic variables are constrained by the abstraction properties, enabling equivalence verification without requiring internal equivalence points between implementations and improving convergence behavior of formal verification tools.
What exactly they claim (claim 1)
1. A hardware verification system comprising: one or more processors to: obtain a set of output specification constraints that collectively characterizes outputs of sorting agents and comprises at least an ordering constraint specifying sorted order of the outputs; and verify output correspondence between a first sorting agent and a second sorting agent within a formal equivalence checking tool by introducing constraint application nodes at outputs of the first sorting agent, wherein the constraint application nodes comprise placeholder variables that replace signal values of the outputs of the first sorting agent during hardware verification, and wherein the placeholder variables are subject to the set of output specification constraints.
Facts
- Company
- Nvidia (NVIDIA Corporation)
- Official title
- FORMAL VERIFICATION OF COMPUTATIONAL AGENTS USING OUTPUT SPECIFICATION CONSTRAINTS
- Publication number
- US20260330116A1
- Application number
- 19576743
- Filed
- Mar 24, 2026
- Published
- Oct 22, 2026
- Inventors
- 1
- Claims
- 20
Classified under
