Nvidia patents hardware to speed up motion blur in ray tracing
Nvidia describes a hardware design that helps computers calculate how light hits moving objects more efficiently. Instead of checking every frame separately, the chip interpolates the object's position between two known states to match the specific time a light ray hits it. This allows the system to process moving shapes at a speed similar to how it handles static objects.
In the filing’s own words
Ray tracing hardware accelerators supporting motion blur and moving/deforming geometry are disclosed. For example, dynamic objects in an acceleration data structure are encoded with temporal and spatial information. The hardware includes circuitry that test ray intersections against moving/deforming geometry by applying such temporal and spatial information. Such circuitry accelerates the visibility sampling of moving geometry, including rigid body motion and object deformation, and its associated moving bounding volumes to a performance similar to that of the visibility sampling of static geometry.
What exactly they claim (claim 1)

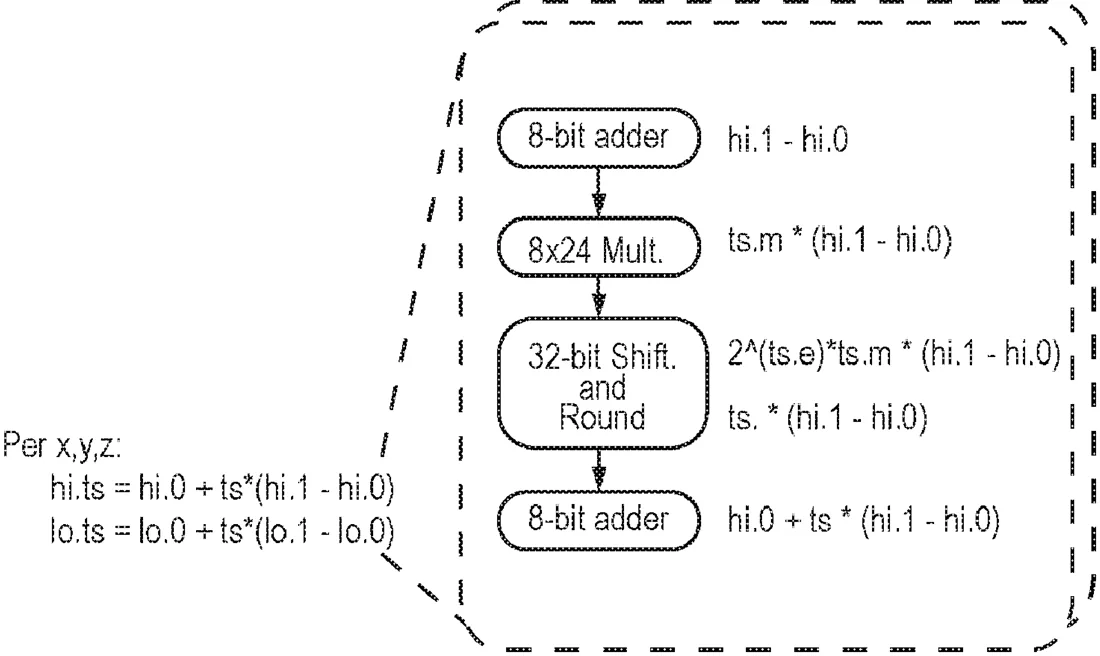

1. A method of operating ray tracing circuitry comprising a communications circuit, a memory access circuit, an interpolation circuit, and a bounding volume intersection testing circuit, the method comprising: receiving with the communications circuit, ray data specifying a ray path and a ray timing; accessing, with the memory access circuit, a stored motion node specifying a first bounding volume bounding a geometric primitive first position and/or shape and a second bounding volume bounding the geometric primitive second position and/or shape; temporally interpolating, with the interpolation circuit at the specified ray timing, an intermediate bounding volume that is spatially intermediate the first bounding volume and the second bounding volume; and testing, with the bounding volume intersection testing circuit, whether the ray path intersects the intermediate bounding volume.
Facts
- Company
- Nvidia (NVIDIA Corporation)
- Official title
- Ray tracing hardware acceleration for supporting motion blur and moving/deforming geometry
- Patent number
- US12762784B2
- Application number
- 18922644
- Filed
- Oct 22, 2024
- Granted
- Oct 13, 2026
- Inventors
- 2
- Claims
- 35
Classified under
G06T 15/06 Physics & computingG06F 9/5027 Physics & computingG06T 3/4007 Physics & computingG06T 9/00 Physics & computingG06T 15/08 Physics & computingG06T 17/10 Physics & computingMore from Nvidia in Chips & hardware
