Samsung patents wearable with separate spaces for screen and sensors

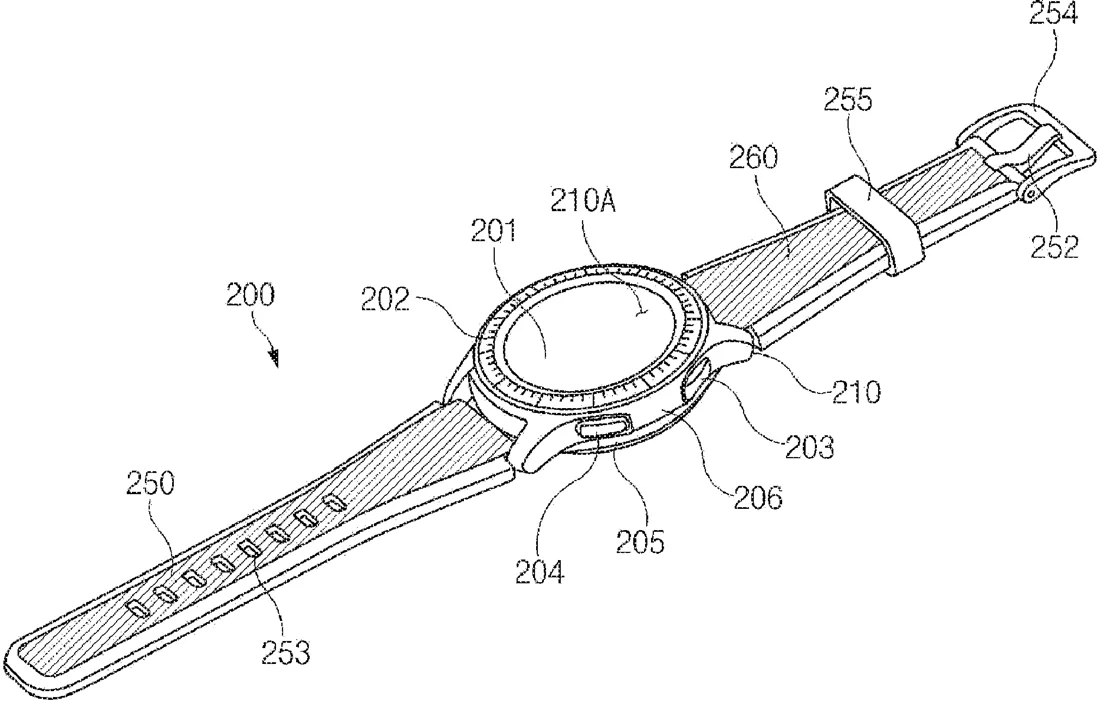

Samsung has filed a patent for a wearable device that uses an internal divider to split the device into two distinct areas. One area holds the display screen, while the other holds a sensor assembly, ensuring the two components do not overlap. The design features a front plate that is slightly angled to cover both the screen and the sensors.
In the filing’s own words
An electronic device is provided. The electronic device includes a housing including a front plate being partially inclined, a rear plate facing in a direction opposite to the front plate, and a side member surrounding an inner space between the front plate and the rear plate, a molding member disposed between the front plate and the rear plate, the molding member dividing the inner space into a first inner space and a second inner space, a display disposed in the first inner space, and a sensor assembly non-overlapping with the display, the sensor assembly being disposed in the second inner space, wherein the front plate covers the display and the sensor assembly.
What exactly they claim (claim 1)
1. An electronic device comprising: a housing including: a front plate being partially inclined, a rear plate facing in a direction opposite to the front plate, and a side member surrounding an inner space between the front plate and the rear plate; a molding member disposed between the front plate and the rear plate, the molding member dividing the inner space into a first inner space and a second inner space; a display disposed in the first inner space; and a sensor assembly non-overlapping with the display, the sensor assembly being disposed in the second inner space, wherein the front plate covers the display and the sensor assembly.
Facts
- Company
- Samsung (Samsung Electronics Co., Ltd.)
- Official title
- WEARABLE ELECTRONIC DEVICE INCLUDING SENSOR ASSEMBLY
- Publication number
- US20260325070A1
- Application number
- 19695284
- Filed
- Jun 2, 2026
- Published
- Oct 22, 2026
- Inventors
- 2
- Claims
- 20
Classified under
A61B 5/681 Human necessitiesA61B 5/0205 Human necessitiesA61B 5/117 Human necessitiesA61B 5/742 Human necessitiesG04G 17/045 Physics & computingG04G 17/08 Physics & computingMore from Samsung in Wearables
- Samsung patents wearable that tracks brain waves to suggest health actions Oct 6, 2026
- Samsung patents wristwatch with flexible screen that wraps around your wrist Oct 15, 2026
- Samsung patents ring that projects a screen onto your skin Oct 22, 2026
- Samsung patents glasses with moving lenses to adjust focus Sep 1, 2026
- Samsung patents wearable that adjusts walking force while you test walk Sep 8, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
