Sony patents medical camera that splits light for clearer views
Sony describes an imaging device that uses a prism to split light from a patient into visible and special wavelengths. This allows two separate sensors to capture distinct images, with the prism designed to let over 90% of the special light reach its dedicated sensor.
In the filing’s own words

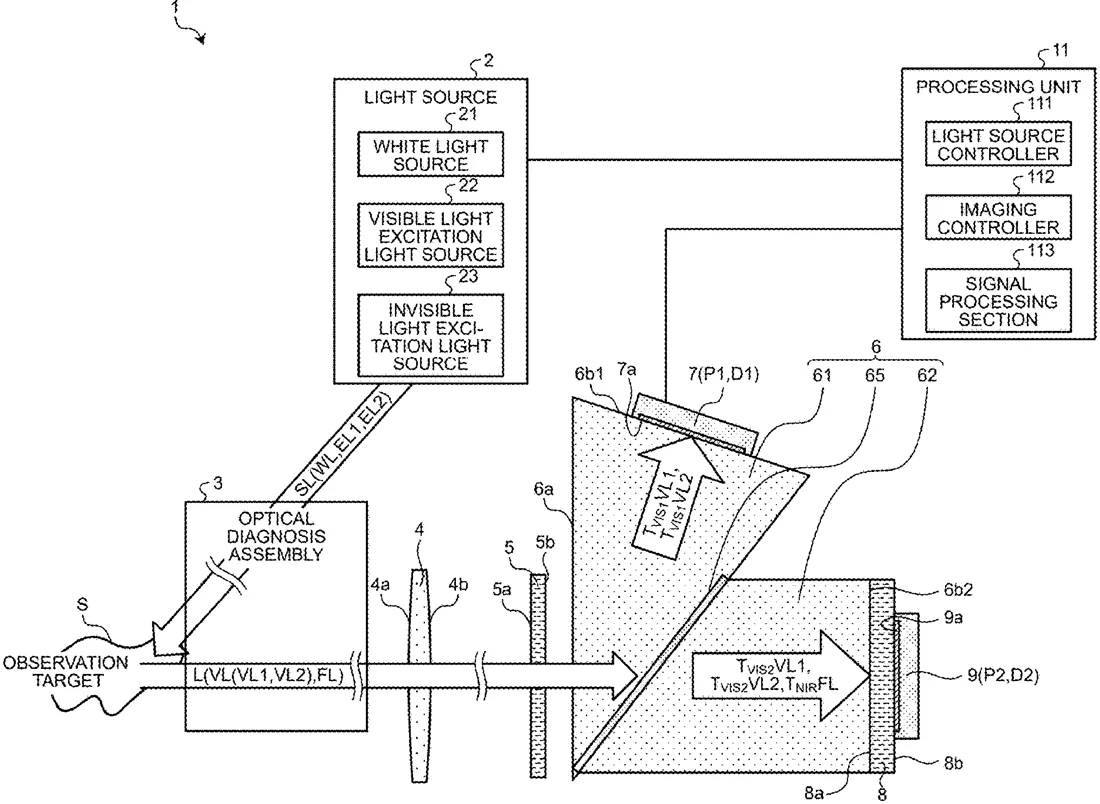

An imaging device includes: a prism configured to separate visible light and special light from each other, the visible light and the special light included in light from an observation target; a visible light imaging sensor configured to image the visible light separated by the prism; and a special light imaging sensor configured to image the special light separated by the prism. A ratio of spectral transmittance of the visible light toward the special light imaging sensor to spectral transmittance of the visible light toward the visible light imaging sensor in the prism is 0.25 or more and 4 or less, and spectral transmittance of the special light toward the special light imaging sensor in the prism is greater than 90%.
What exactly they claim (claim 1)
1. An imaging device comprising: a prism configured to separate visible light and special light from each other, the visible light and the special light included in light from an observation target; a visible light imaging sensor configured to image the visible light separated by the prism; and a special light imaging sensor configured to image the special light separated by the prism, wherein a ratio of spectral transmittance of the visible light toward the special light imaging sensor to spectral transmittance of the visible light toward the visible light imaging sensor in the prism is 0.25 or more and 4 or less, and spectral transmittance of the special light toward the special light imaging sensor in the prism is greater than 90%.
Facts
- Company
- Sony (SONY GROUP CORPORATION)
- Official title
- IMAGING DEVICE AND MEDICAL OBSERVATION SYSTEM
- Publication number
- US20260324951A1
- Application number
- 19110426
- Filed
- Sep 4, 2023
- Published
- Oct 22, 2026
- Inventors
- 2
- Claims
- 20
Classified under
A61B 1/00096 Human necessitiesA61B 1/00009 Human necessitiesA61B 1/043 Human necessitiesA61B 1/0653 Human necessitiesA61B 1/3132 Human necessitiesMore from Sony in Health & body
- Sony patents method to analyze tumors using tissue and blood tests Sep 10, 2026
- Sony patents eye surgery display that tracks patient's eye movement Sep 8, 2026
- Sony patents flexible electrode that sticks to skin for health monitoring Sep 15, 2026
- Sony patents robotic arm that adjusts its reach to avoid surgeons Sep 29, 2026
- Sony patents system to predict sleepwalking risk from pre-sleep data Sep 3, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
