Google patents method to combine vision and language AI models

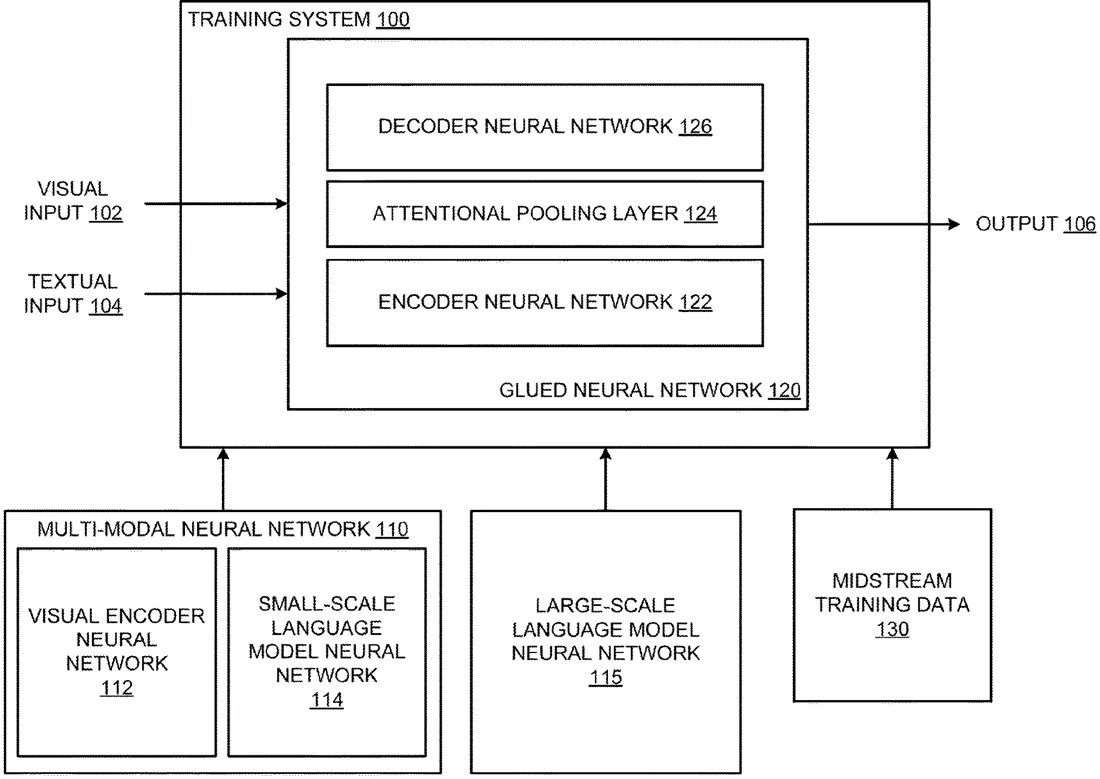

Patent drawing
Patent drawing from the official filing.

Google describes a way to build a new AI system by taking parts from two existing models: one that understands images and basic text, and another that handles complex language. The company explains how to link these parts together and train them as a single unit to handle tasks involving both pictures and words.

Why it mattersThis technique could help developers create more efficient AI systems that understand both images and text without training everything from scratch.

In the filing’s own words

Methods, systems, and apparatus, including computer programs encoded on computer storage media, for generating and training a glued neural network that reuses components taken from a first pre-trained neural network and a second pre-trained neural network. For example, the first pre-trained neural network can be a multi-modal neural network that includes a visual encoder neural network and a small-scale language model neural network. The second pre-trained neural network can be a large-scale language model neural network.

What exactly they claim (claim 1)

1. A computer-implemented method comprising: obtaining data specifying a visual encoder neural network that has been trained jointly with a small-scale language model neural network as part of a multi-modal neural network that has been trained to perform one or more upstream multi-modal tasks; obtaining data specifying a large-scale language model neural network that has been trained to perform one or more upstream language modeling tasks; generating a glued neural network that includes parameters taken from both the visual encoder neural network and the large-scale language model neural network; training the glued neural network to perform a midstream multi-modal task, including adjusting learned values of only a proper subset of the parameters of the glued neural network by using a set of midstream training pairs that each include a respective visual input and a respective text sequence, while holding learned values of the parameters that are not in the proper subset fixed; and after training the glued neural network to perform the midstream multi-modal task, adapting the trained glued neural network for a downstream multi-modal task.

Facts

Company
Google (Google LLC)
Official title
TRAINING VISION LANGUAGE NEURAL NETWORKS WITH COMPONENT REUSE
Publication number
US20260311476A1
Application number
19481560
Filed
May 10, 2024
Published
Oct 8, 2026
Inventors
5
Claims
21

Classified under

G06V 10/82 Physics & computingG06F 40/284 Physics & computingG06N 3/0455 Physics & computing
