Samsung patents method to build 3D maps from single photos
Samsung describes a method that uses machine learning to create a 3D map of a scene from a single 2D photo. The system first aligns the map to gravity and then adjusts it to show the scene from a different angle than the original camera.
In the filing’s own words

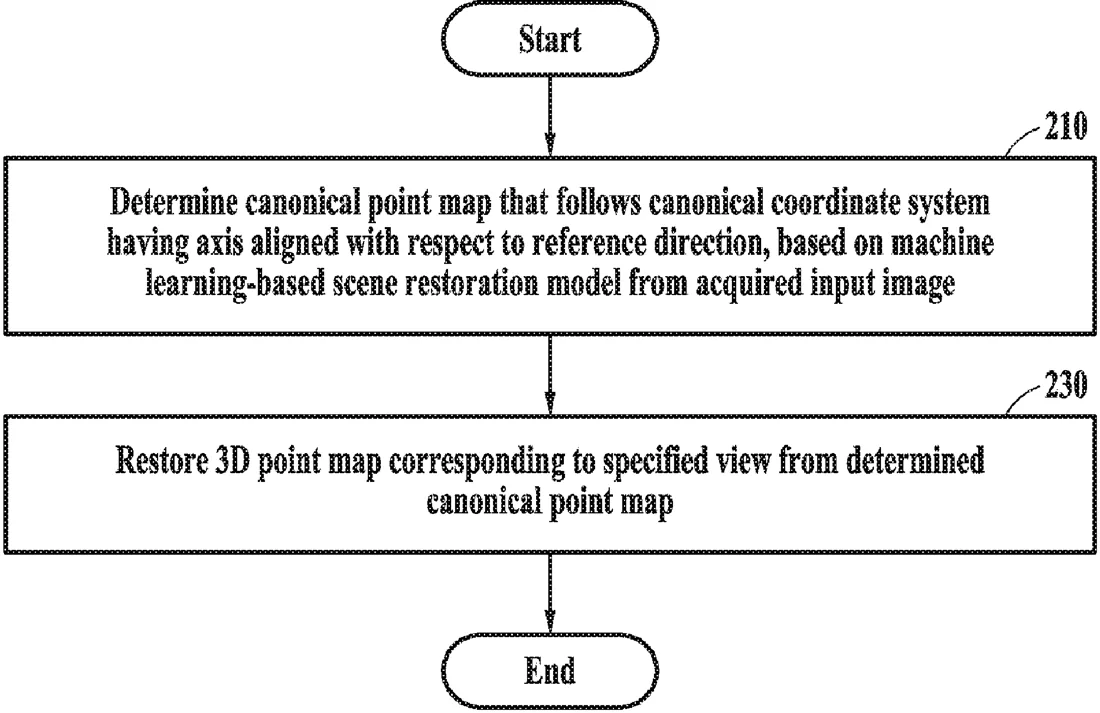

A scene restoration method according to an example includes determining a canonical point map aligned with respect to a gravity direction, based on a machine learning-based scene restoration model from an input image. The scene restoration method may restore a three-dimensional (3D) point map corresponding to a specified view from the determined canonical point map.
What exactly they claim (claim 1)
1. An electronic device, comprising: one or more processors comprising processing circuitry; and memory storing instructions that, when executed by the one or more processors, cause the electronic device to: determine a canonical point map that follows a canonical coordinate system having an axis aligned with respect to a reference direction, based on a machine learning-based scene restoration model from an acquired input image, wherein when a camera acquires the input image the camera has a view that is not aligned with the reference direction, and restore, from the determined canonical point map, a three-dimensional (3D) point map corresponding to a specified view that differs from the view of the camera when it acquires the input image.
Facts
- Company
- Samsung (Samsung Electronics Co., Ltd.)
- Official title
- METHOD AND DEVICE WITH RESTORATION OF THREE-DIMENSIONAL POINT MAP FROM MONOCULAR IMAGE
- Publication number
- US20260311421A1
- Application number
- 19639904
- Filed
- Apr 6, 2026
- Published
- Oct 8, 2026
- Inventors
- 2
- Claims
- 20
Classified under
G06T 15/205 Physics & computingG06T 7/70 Physics & computingG06T 2207/20084 Physics & computingMore from Samsung in AI & software
