Samsung patents screen that tracks objects and sends them to other displays

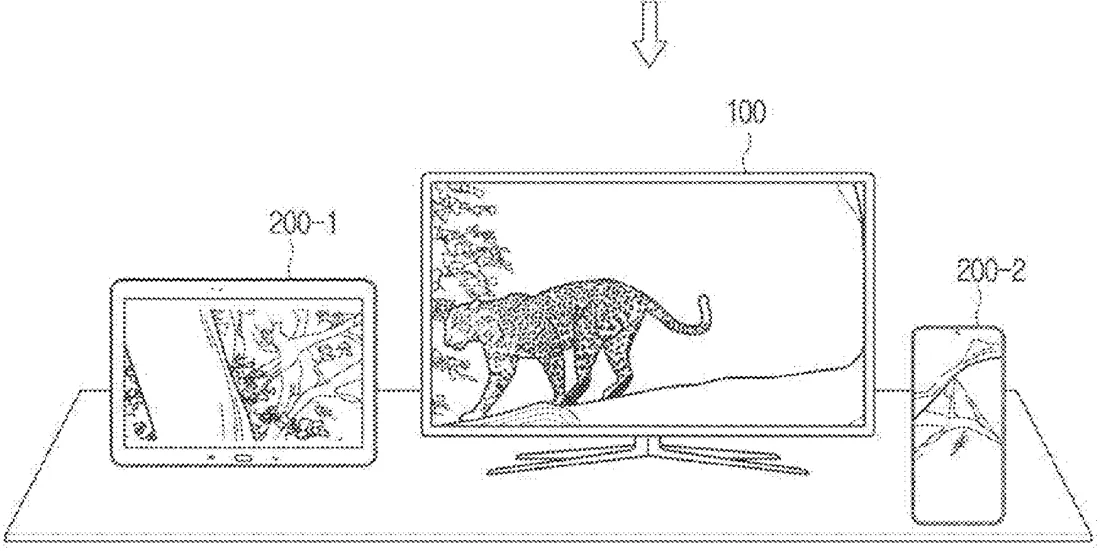

Patent drawing
Patent drawing from the official filing.

Samsung describes a display system that watches an image on the screen to track the movement of a specific object. It then uses that movement data to stream a new image of the object to a second display device.

Why it mattersThis could allow users to move specific parts of a video or game from one screen to another, such as following a player in a sports broadcast on a secondary monitor.

In the filing’s own words

A display apparatus includes a display, a communication interface, memory configured to store instructions, and at least one processor operatively connected with the display, the communication interface and the memory and configured to execute the instructions. The instructions, when executed by the at least one processor, cause the display apparatus to: display a first image on the display; identify a motion of an object included in the first image; obtain a second image including the object based on the identified motion; and stream the second image to another display apparatus through the communication interface.

What exactly they claim (claim 1)

1. A display apparatus comprising: a display; a communication interface; memory configured to store instructions; and at least one processor operatively connected with the display, the communication interface, and the memory, and configured to execute the instructions, wherein the instructions, when executed by the at least one processor, cause the display apparatus to: display a first image on the display; identify a motion of an object included in the first image and a location of another display apparatus; obtain a second image including the object based on the identified motion and the location of the another display apparatus; and stream the second image to the another display apparatus.

Facts

Company
Samsung (SAMSUNG ELECTRONICS CO., LTD.)
Official title
DISPLAY APPARATUS FOR EXPANDING SCREEN AREA AND CONTROL METHOD THEREOF
Publication number
US20260299866A1
Application number
19700535
Filed
Jun 8, 2026
Published
Oct 1, 2026
Inventors
5
Claims
20

Classified under

G06F 3/1446 Physics & computingG06T 3/4023 Physics & computingG06T 7/20 Physics & computingG06T 11/00 Physics & computing
