Microsoft patents touchpad design using flat springs for better feel

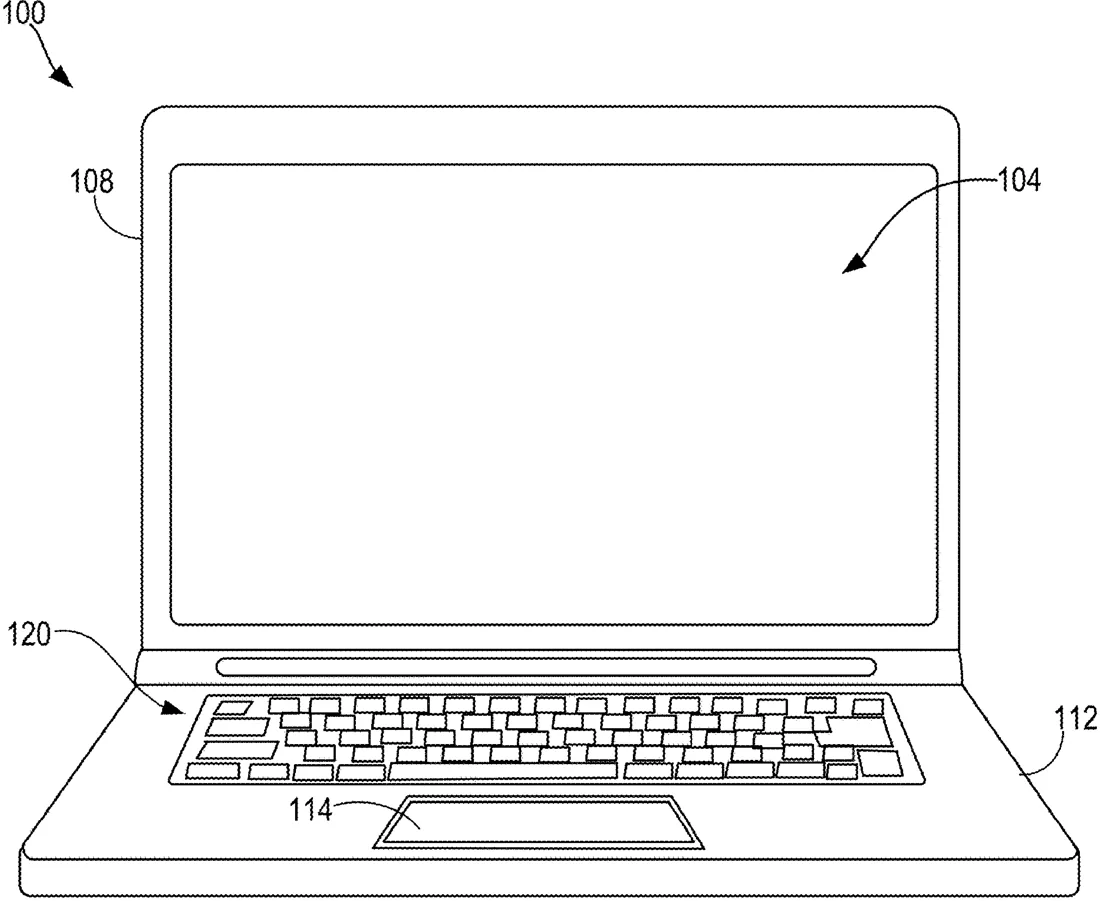

Patent drawing from the official filing.

Microsoft has filed a patent for a touch input device, likely a laptop trackpad, that uses a specific mechanical arrangement to handle user clicks. The design features a printed circuit board with a switch and a mounting bracket connected by multiple flat springs. These springs are positioned inside the edge of the touch surface to support the internal components.

Why it mattersThis filing details a specific way to build the internal mechanics of a touchpad, which could lead to a slightly different feel or durability in future laptops, though it is a standard hardware improvement.

In the filing’s own words

An input device comprises a touch surface and a printed circuit board comprising a switch. A mounting bracket comprises a boss aligned with the switch, and a plurality of flat springs each comprise a bracket end affixed to the mounting bracket and an opposite end coupled to the printed circuit board.

What exactly they claim (claim 1)

1. An input device, comprising: a touch surface; a printed circuit board; a switch mounted to the printed circuit board; a mounting bracket comprising a boss aligned with the switch; and a plurality of flat springs each comprising a bracket end affixed to the mounting bracket and an opposite end coupled to the printed circuit board, wherein the bracket end and the opposite end are located within a perimeter of the touch surface.

Facts

Company: Microsoft (Microsoft Technology Licensing, LLC)
Official title: TOUCH INPUT DEVICE
Publication number: US20260299715A1
Application number: 19090274
Filed: Mar 25, 2025
Published: Oct 1, 2026
Inventors: 4
Claims: 20

Classified under

G06F 3/03547 Physics & computingG06F 1/169 Physics & computingG06F 3/0202 Physics & computing
