Disney patents laser system that creates bright, non-coherent light

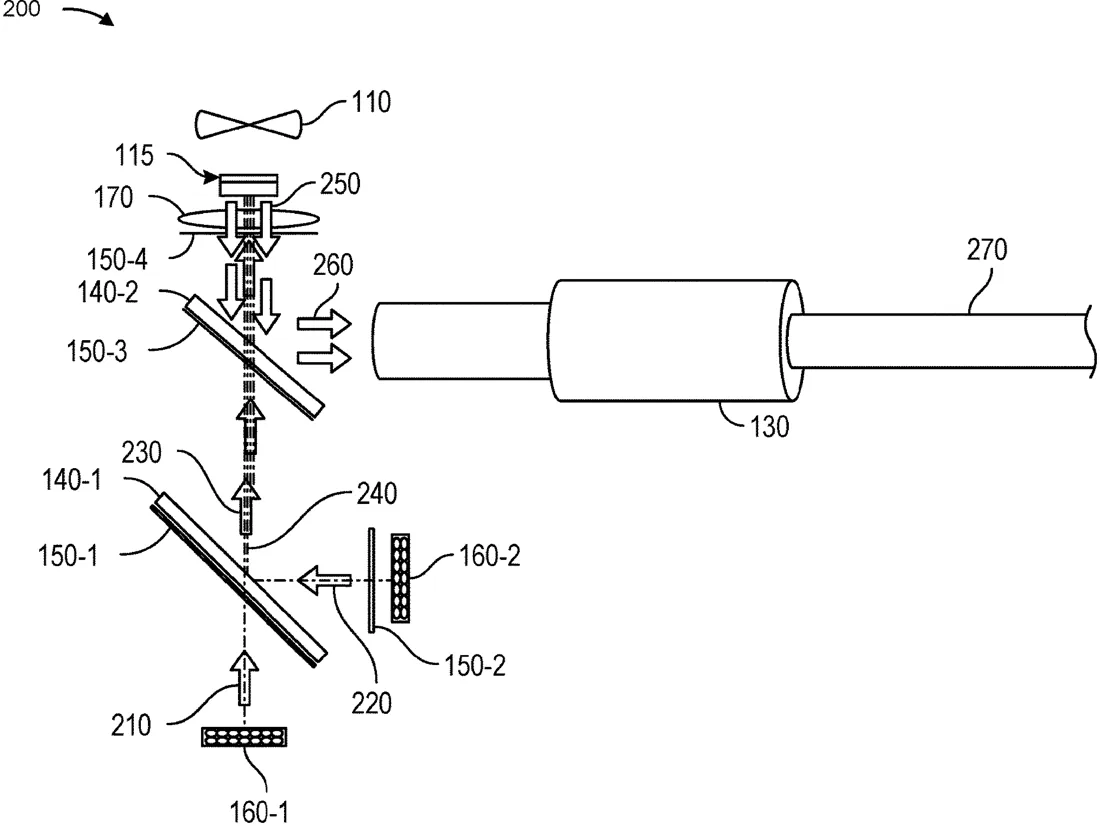

Patent drawing
Patent drawing from the official filing.

The filing describes a system that combines light from two separate laser arrays with a phosphor assembly to produce a bright, non-coherent light source. A linear polarizer is used to manage the light from the first laser array before it interacts with the second array and the phosphor material.

Why it mattersThis technology could potentially improve lighting systems or projection displays by using lasers to create light that behaves more like traditional bright sources rather than focused laser beams.

In the filing’s own words

A system includes a first array of lasers, a first linear polarizer, a second array of lasers, and a phosphor assembly. The first array of lasers is configured to emit a first light. The first linear polarizer is configured to receive the first light. The second array of lasers is configured to emit a second light. The phosphor assembly is positioned to receive the first light from the first array of lasers and the second light from the second array of lasers, and to generate a non-coherent light based on a combination of the first light and the second light.

What exactly they claim (claim 1)

1. A system, comprising: a first array of lasers configured to emit a first light; a first linear polarizer configured to receive the first light; a second array of lasers configured to emit a second light; and a phosphor assembly positioned to receive the first light from the first array of lasers and the second light from the second array of lasers and to generate a non-coherent light based on a combination of the first light and the second light.

Facts

Company
Disney (DISNEY ENTERPRISES, INC.)
Official title
SYSTEM FOR GENERATING COLLIMATED NON-COHERENT BRIGHT LIGHT USING A PLURALITY OF OPTICAL ELEMENTS
Publication number
US20260298443A1
Application number
19698471
Filed
Jun 4, 2026
Published
Oct 1, 2026
Inventors
3
Claims
20

Classified under

F21V 13/12 Mechanical engineeringF21V 5/04 Mechanical engineeringF21V 9/14 Mechanical engineeringF21V 9/30 Mechanical engineeringF21Y 2115/30 Mechanical engineering
Read the full filing (official PDF) ↗ Open in the Patent Tracker
