Samsung patents oven that tells you when to flip food for frying
This filing describes a kitchen appliance that combines microwave, hot air, and grill heating to fry food. The system uses a specific sequence of heating methods and prompts the user to turn the food over at a precise moment between stages.
In the filing’s own words

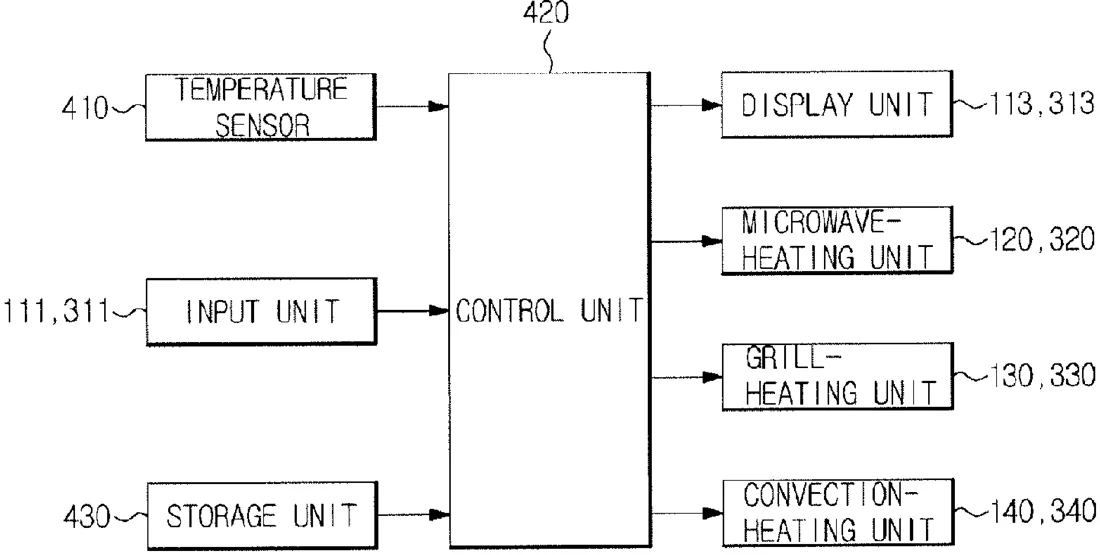

A cooking apparatus has a cooking chamber, a microwave unit to radiate microwaves to the cooking chamber, a convection unit to supply hot air to the cooking chamber, a grill unit to supply radiant heat to the cooking chamber, an input unit to receive a cooking command and a control unit to perform a cooking corresponding to the received cooking command by performing one of a first heating stage and a second heating stage, and after performing the one of the first heating stage and the second heating stage, performing the other one of the first heating stage and the second heating stage. In the first heating stage, the control unit operates the microwave unit and at least one of the convection unit and the grill unit, and in the second heating stage, the control unit operates the grill unit and the convection unit while not operating the microwave unit.
What exactly they claim (claim 1)
1. A cooking apparatus comprising: a body having a cooking chamber therein; a microwave-heating unit, including a magnetron, and operable to radiate microwaves to the cooking chamber; a convection-heating unit, including a convection circulation fan, and that is operable to circulate heated air to the cooking chamber; a grill-heating unit, including a grill heater, and operable to emit radiant heat to the cooking chamber; a control panel configured to receive a fry cooking command and to receive a selection of a kind of food to be cooked; and a control unit configured to: perform a fry cooking operation based on the fry cooking command and the selection of a kind of food to be cooked having been received, the fry cooking operation including: a heating stage in which the microwave-heating unit is operated, an additional heating stage in which one of the convection-heating unit and the grill-heating unit, but not the other of the convection-heating unit and the grill-heating unit, is operated, wherein the additional heating stage is performed after the heating stage is performed, and a further heating stage in which the other of the convection-heating unit and the grill-heating unit is operated, wherein the further heating stage is performed after the additional heating stage is performed, and inform a user to turn over food in the cooking chamber at a time between the additional heating stage and the further heating stage, wherein respective operating times of the heating stage, the additional heating stage, and the further heating stage are preset based on the received selection of a kind of food to be cooked.
Facts
- Company
- Samsung (SAMSUNG ELECTRONICS CO., LTD.)
- Official title
- Cooking apparatus and control method thereof
- Patent number
- US12772350B2
- Application number
- 19529914
- Filed
- Feb 4, 2026
- Granted
- Oct 20, 2026
- Inventors
- 4
- Claims
- 16
Classified under
H05B 6/6485 Electricity & electronicsA23B 2/08 Human necessitiesA23L 5/12 Human necessitiesA23L 5/15 Human necessitiesA23L 5/17 Human necessitiesA23L 5/34 Human necessitiesMore from Samsung in Phones & computers
