Sony patents image sensor that flags internal noise during event detection
Sony describes an image sensor that detects changes in light as specific events rather than capturing full video frames. The sensor includes a processing unit that generates electromagnetic noise and an output unit that signals when this noise is active during event detection.
In the filing’s own words

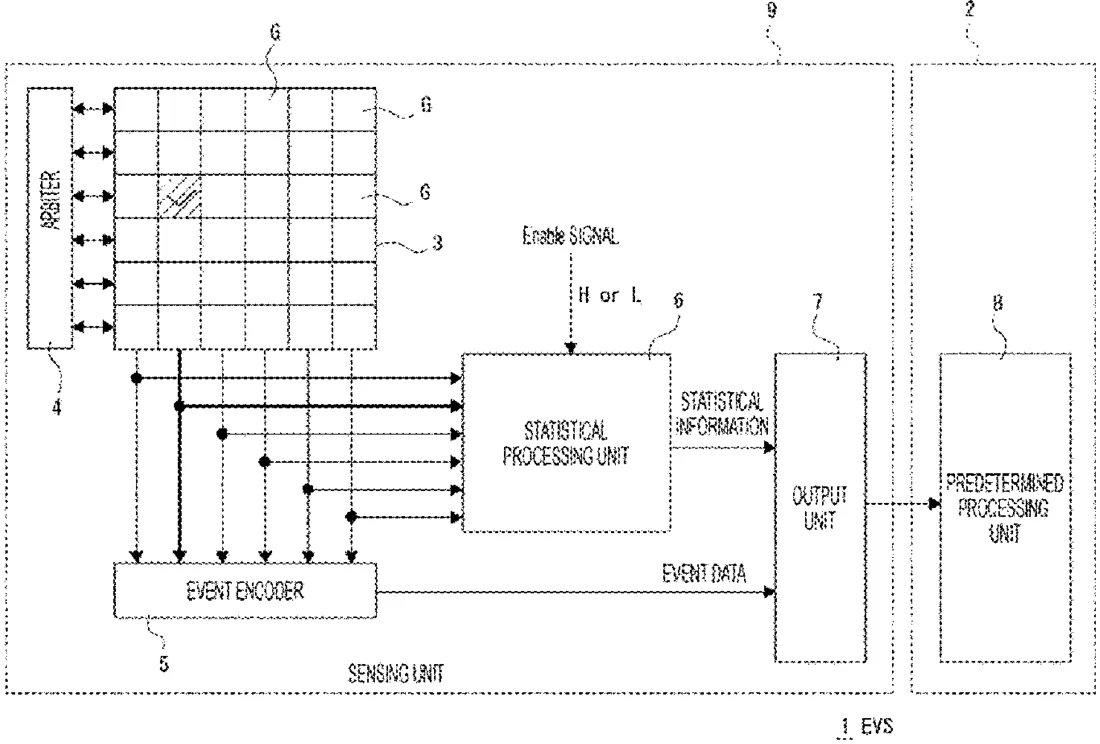

An image sensor includes: a pixel array unit in which pixels are two-dimensionally arranged, the pixels detecting a change in light reception amount as an event and generating an event signal indicating a detection result of the event; a predetermined processing unit configured to execute predetermined processing accompanied by generation of electromagnetic noise; and an information output unit configured to generate and output noise source driving presence/absence data indicating whether or not the predetermined processing is executed when the event is detected.
What exactly they claim (claim 1)
1. An image sensor comprising: a pixel array unit in which pixels are two-dimensionally arranged, the pixels detecting a change in light reception amount as an event and generating an event signal indicating a detection result of the event; a predetermined processing unit configured to execute predetermined processing accompanied by generation of electromagnetic noise; and an information output unit configured to output noise source driving presence/absence data indicating whether or not the predetermined processing is executed when the event is detected.
Facts
- Company
- Sony (Sony Semiconductor Solutions Corporation)
- Official title
- Image sensor and data structure
- Patent number
- US12771956B2
- Application number
- 18837029
- Filed
- Mar 13, 2023
- Granted
- Oct 20, 2026
- Inventors
- 1
- Claims
- 12
Classified under
H04N 25/47 Electricity & electronicsG06N 20/00 Physics & computingH04N 25/617 Electricity & electronicsMore from Sony in Chips & hardware
