Nvidia patents chip power trick to reduce electrical noise
Nvidia describes a circuit design for power regulators that cleans up electrical signals. It uses a sensor to detect changes in current and adjusts the signal to cancel out unwanted noise.
In the filing’s own words

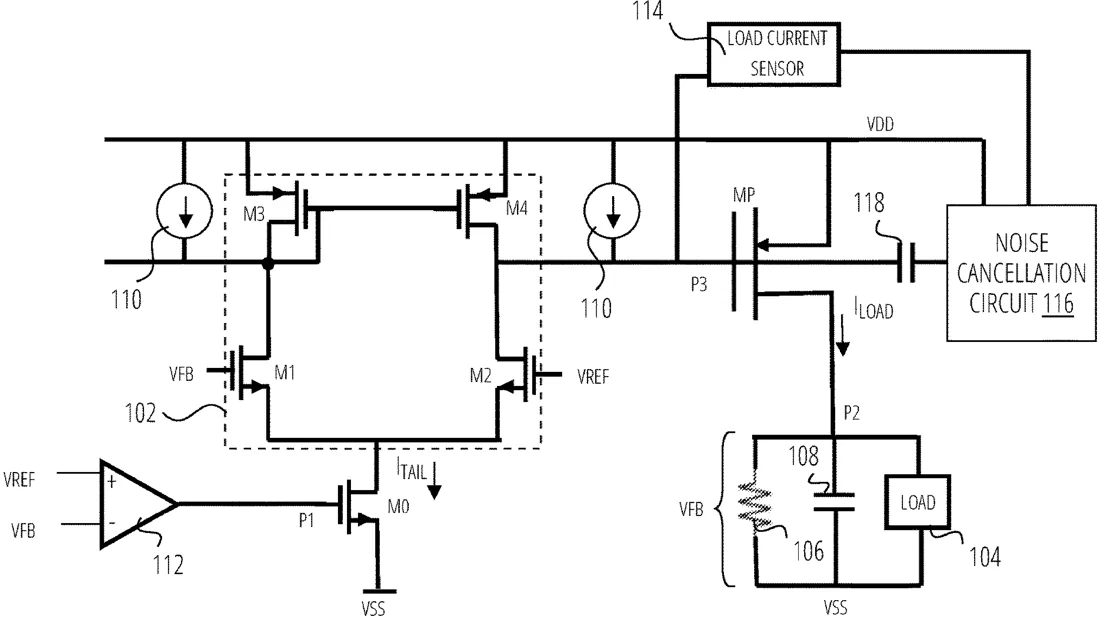

A regulator for a load voltage includes a pass transistor for a load current, a gate voltage sensor coupled to a gate of the pass transistor, and a feed-forward supply noise cancellation circuit configured to amplify a gain of a supply noise cancelling signal at increments of the gate voltage.
What exactly they claim (claim 1)
1. A noise suppression circuit comprising: a pass transistor for a load current; and a feed-forward supply noise cancellation circuit configured to provide gain increments to generate a noise-cancelling signal at the gate of the pass transistor in response to changes in the load current.
Facts
- Company
- Nvidia (NVIDIA Corp.)
- Official title
- Feed forward supply noise cancellation (FFNC) technique with load current sensor for regulator PSR improvement
- Patent number
- US12761679B2
- Application number
- 18643958
- Filed
- Apr 23, 2024
- Granted
- Oct 13, 2026
- Inventors
- 3
- Claims
- 19
Classified under
G05F 1/575 Physics & computingG05F 1/467 Physics & computingG05F 1/565 Physics & computingMore from Nvidia in Chips & hardware
- Nvidia patents method to skip zero data in neural network math Oct 13, 2026
- Nvidia patents hardware to speed up motion blur in ray tracing Oct 13, 2026
- Nvidia patents method to sync data across split processor chips Sep 17, 2026
- Nvidia patents chip math trick to speed up AI calculations Oct 8, 2026
- Nvidia patents data center cooling that uses cryogenic fluids Oct 15, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
