ApplePatent applicationNetworks & wirelessInterest 2/10

Apple patents phone signal switching for better uplink coverage

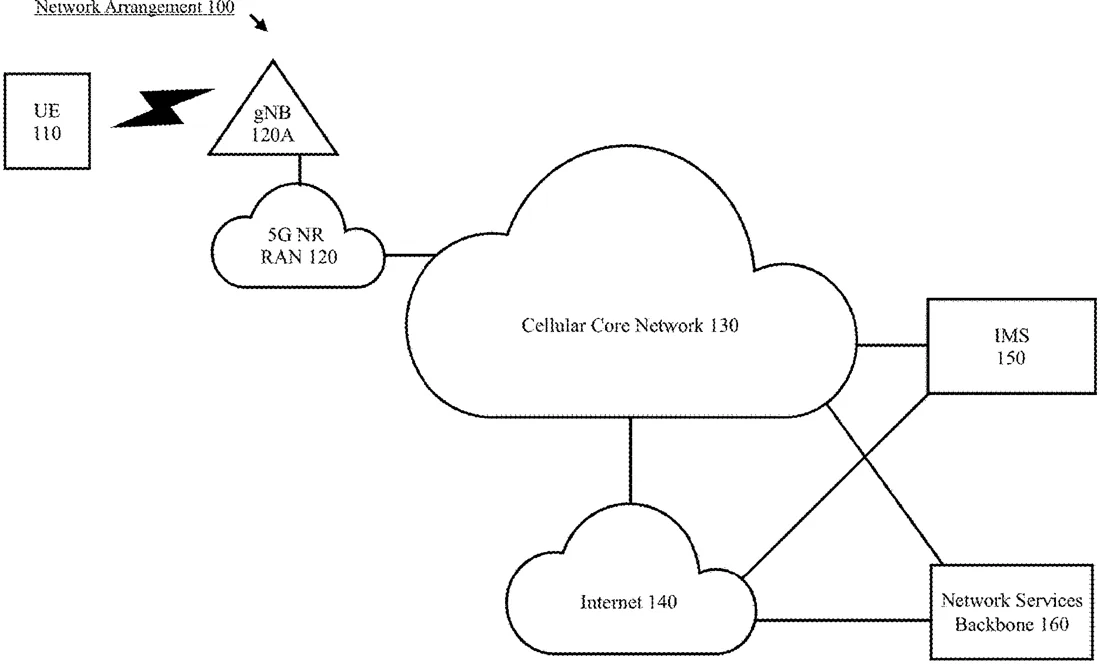

Patent drawing
Patent drawing from the official filing.

Apple describes a method for phones to tell a network which frequency bands they can use to send data. The phone then follows instructions to switch between up to four different bands to maintain a stable connection.

Why it mattersThis is a standard technical improvement to help phones maintain a strong signal when sending data, particularly in areas with weak reception.

In the filing’s own words

A user equipment (UE configured to configure transceiver circuitry to transmit UE capability information related to uplink (UL) transmission (Tx) switching to a network, wherein the UE capability comprises an indication that the UE supports two or more supplementary uplink (SUL) bands or carriers, decode, from signaling received from the network, a UL Tx switching configuration based on at least the UE capability information, wherein the UL Tx switching configuration comprises one of 3 configured bands or 4 configured bands and perform UL transmissions based on the UL Tx switching configuration.

What exactly they claim (claim 1)

1. An apparatus of a user equipment (UE), the apparatus comprising processing circuitry configured to: configure transceiver circuitry to transmit UE capability information related to uplink (UL) transmission (Tx) switching to a network, wherein the UE capability comprises an indication that the UE supports two or more supplementary uplink (SUL) bands or carriers; decode, from signaling received from the network, a UL Tx switching configuration based on at least the UE capability information, wherein the UL Tx switching configuration comprises one of 3 configured bands or 4 configured bands; and perform UL transmissions based on the UL Tx switching configuration.

Facts

Company
Apple (Apple Inc.)
Official title
Uplink Transmitter Switching with Multiple Supplementary Uplink Bands or Carriers
Publication number
US20260333357A1
Application number
19101460
Filed
Aug 7, 2023
Published
Oct 22, 2026
Inventors
10
Claims
20

Classified under

H04W 72/21 Electricity & electronics
Read the full filing (official PDF) ↗ Open in the Patent Tracker
