Apple patents head-mounted device with internal material dam

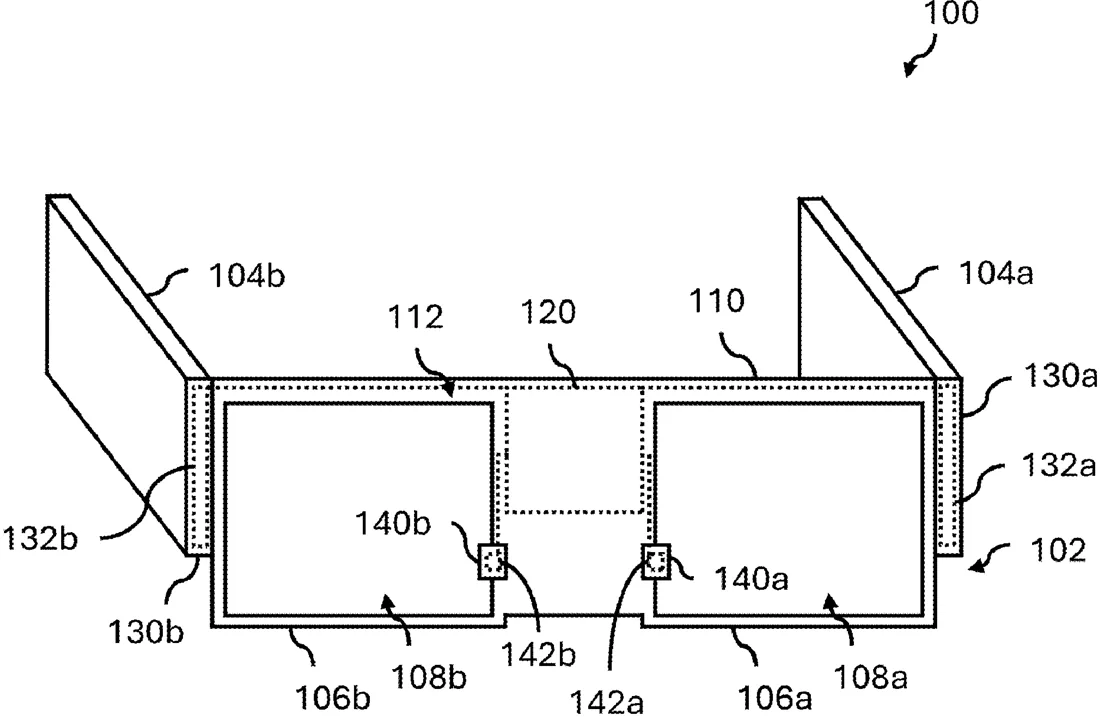

Apple describes a head-mountable device, such as glasses or a headset, that includes a frame, a display window, and internal components. The design features a specific structure called a material dam that creates a boundary between the internal space and the rest of the frame.

In the filing’s own words

A head-mountable device can include a frame defining a first portion and a housing defining an internal frame volume, a display window coupled to the frame, an internal component disposed within the internal frame volume, and a material dam coupled to the first portion and defining a boundary between the internal frame volume and the first portion.

Facts

Company

Apple (Apple Inc.)

Official title

HEAD-MOUNTABLE DEVICE

Publication number

US20260329095A1

Application number

19313462

Filed

Aug 28, 2025

Published

Oct 22, 2026

Inventors

4

Claims

20
