Sony patents camera method that filters out flicker noise
Sony describes an imaging device that separates useful event signals from unwanted noise. It uses specific units to detect flicker in the pixel data and removes it before the final image is processed.
In the filing’s own words

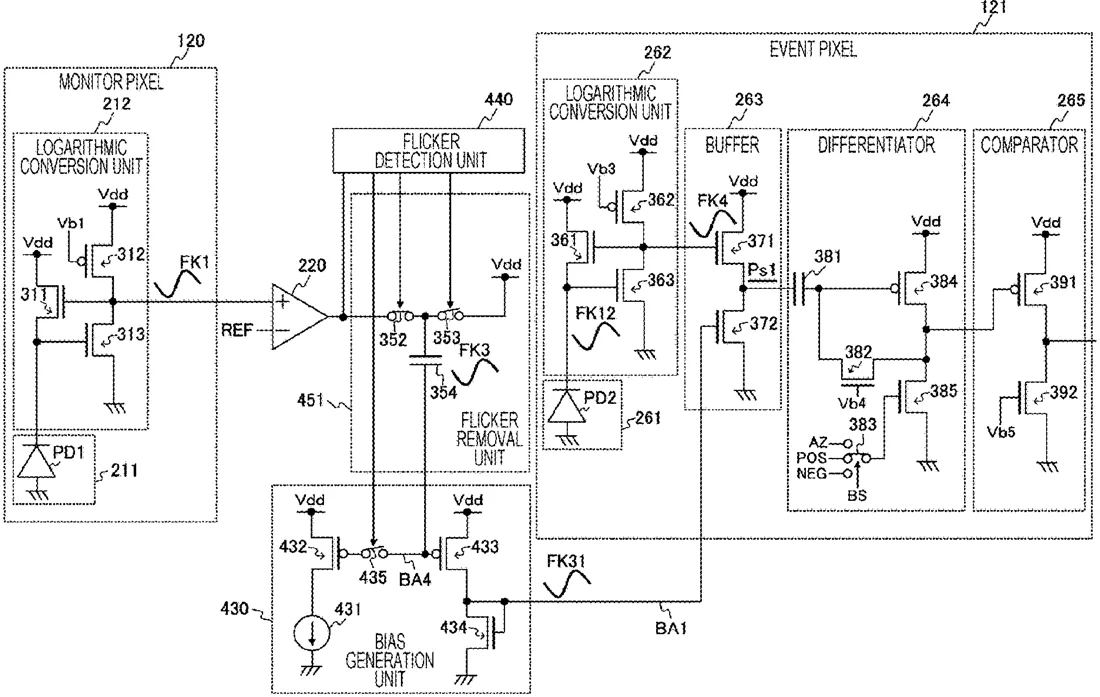

Cancelling noise without deleting an event to be detected is disclosed. In one example, an imaging device includes a signal detection unit that detects a first pixel signal, and an event detection unit that detects an event signal on the basis of the first pixel signal and a second pixel signal. A noise detection unit that detects noise on the basis of the first pixel signal and a noise removal unit that removes the noise detected by the noise detection unit from the event signal may be further included. The noise detection unit may include a flicker detection unit that detects a flicker signal on the basis of the first pixel signal, and the noise removal unit may include a flicker removal unit that removes the flicker signal detected by the flicker detection unit from the event signal.
What exactly they claim (claim 1)
1. An imaging device comprising a signal detection unit that detects a first pixel signal, and an event detection unit that detects an event signal on a basis of the first pixel signal and a second pixel signal.
Facts
- Company
- Sony (Sony Semiconductor Solutions Corporation)
- Official title
- IMAGING DEVICE AND IMAGING METHOD
- Publication number
- US20260323166A1
- Application number
- 19483828
- Filed
- Apr 3, 2024
- Published
- Oct 15, 2026
- Inventors
- 3
- Claims
- 20
Classified under
H04N 23/745 Electricity & electronicsH04N 25/47 Electricity & electronicsH04N 25/60 Electricity & electronicsH04N 25/703 Electricity & electronicsMore from Sony in Cameras & imaging
