Google patents ad system that keeps user data private

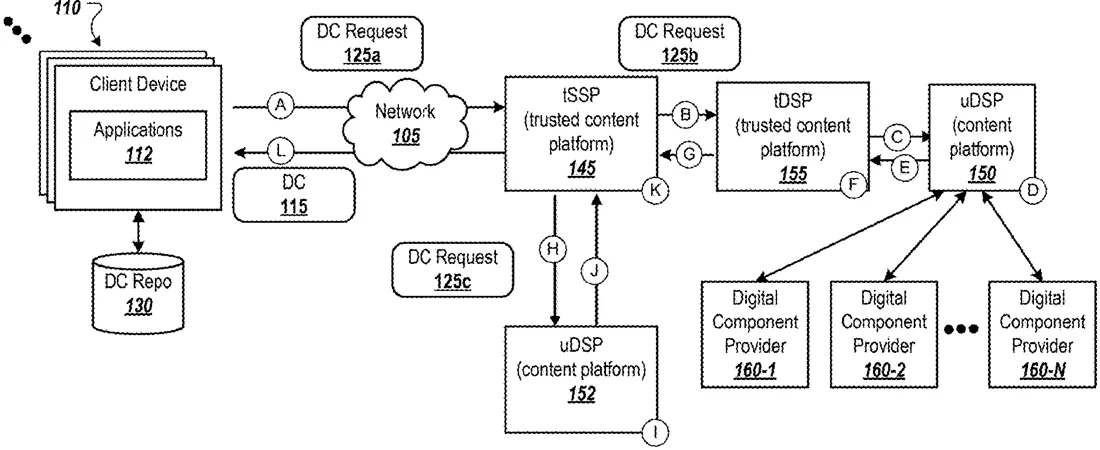

Patent drawing
Patent drawing from the official filing.

Google describes a method for selecting digital content, such as ads, while protecting user privacy. The system sends encrypted user data only to trusted partners and shares only general context with untrusted sources before choosing the best content to display.

Why it mattersThis approach could make online advertising more private by limiting how much personal information is shared with third-party ad networks.

In the filing’s own words

Methods, systems, and apparatus, including medium-encoded computer program products for selecting and displaying content in privacy preserving manners. In one aspect, a method includes receiving, by a first trusted content platform and from a client device of a user, a first digital component request that includes sensitive data and non-sensitive data. The first trusted content platform sends a second digital component request that includes encrypted user data to one or more second trusted content platforms. The first trusted content platform receives, from each second trusted content platform, one or more first candidate digital components. The first trusted content platform sends a third digital component request to each of one or more second untrusted content platforms. The first trusted content platform receives, from each second untrusted content platform, one or more second candidate digital components. The first trusted content platform selects a given digital component.

What exactly they claim (claim 1)

1. A computer-implemented method comprising: receiving, by a first trusted content platform and from a client device of a user, a first digital component request comprising (i) sensitive data comprising encrypted user data for the user and (ii) non-sensitive data comprising contextual data related to a resource with which a selected digital component will be presented at the client device; sending, by the first trusted content platform, a second digital component request comprising the encrypted user data to one or more second trusted content platforms; receiving, by the first trusted content platform and from each second trusted content platform, one or more first candidate digital components; sending, by the first trusted content platform, a third digital component request to each of one or more second untrusted content platforms, wherein the third digital component request sent to each second untrusted content platform comprises the contextual data; receiving, by the first trusted content platform and from each second untrusted content platform, one or more second candidate digital components; selecting, by the first trusted content platform, a given digital component from a set of candidate digital components comprising the one or more first candidate digital components received from each second trusted content platform and the one or more second candidate digital components received from each second untrusted content platform; and sending the given digital component to the client device of the user for presentation with the resource.

Facts

Company
Google (Google LLC)
Official title
SECURE AND EFFICIENT WORKFLOWS USING TRUSTED EXECUTION ENVIRONMENTS
Publication number
US20260320223A1
Application number
18860989
Filed
Dec 19, 2023
Published
Oct 15, 2026
Inventors
5
Claims
30

Classified under

G06F 21/6245 Physics & computingG06F 21/602 Physics & computing
