Samsung patents camera lens system that switches driving modes to cut noise

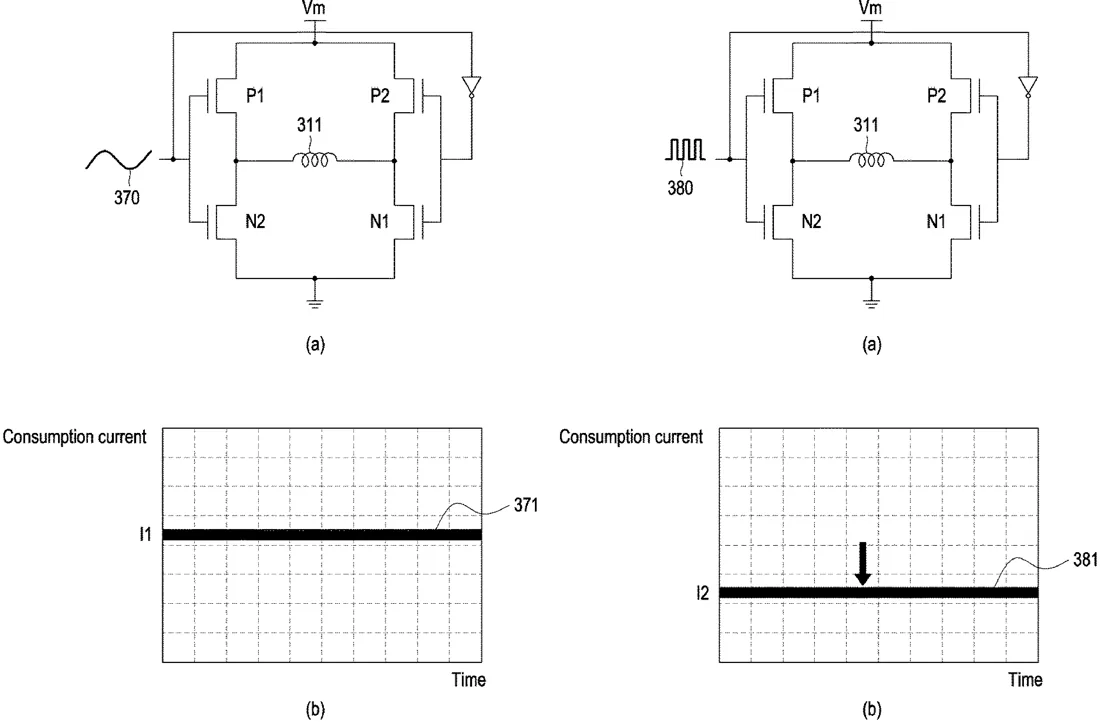

Patent drawing
Patent drawing from the official filing.

Samsung describes a camera module where the lens moves using a coil and magnet system. The device calculates how much electrical noise the lens motor might create and switches between two different power delivery methods to keep that noise below a certain level.

Why it mattersThis technique could help smartphone cameras produce cleaner images by preventing the lens motor from interfering with the sensor's signal.

In the filing’s own words

A camera module includes: an image sensor; a first lens assembly; and a first driving circuit including a first coil and a first magnet, wherein the first driving circuit is configured to move the first lens assembly in at least one axial direction. A method of operating a camera module may comprise: applying a driving voltage to the first driving circuit according to a linear driving method based on a first value being greater than a specified value, the first value being related to a first maximum current value flowing through the first coil and noise of the image sensor based on a first distance between the first coil and the image sensor; and applying the driving voltage to the first driving circuit according to a PWM method based on the first value not being greater than the specified value.

What exactly they claim (claim 1)

1. A method of operating a camera module, wherein the camera module comprises an image sensor, a first lens assembly including at least one lens, and first driving circuitry including a first coil and a first magnet, and wherein the first driving circuitry is configured to move the first lens assembly in at least one axial direction, the method comprising: based on a first value related to noise of the image sensor based on a first maximum current value flowing in the first coil and a first distance between the first coil and the image sensor being greater than a specified value, applying a driving voltage to the first driving circuitry according to a linear driving scheme; and based on the first value being no greater than the specified value, applying the driving voltage to the first driving circuitry according to a pulse width modulation (PWM) scheme.
