Google patents camera-based navigation that uses sound to keep you oriented

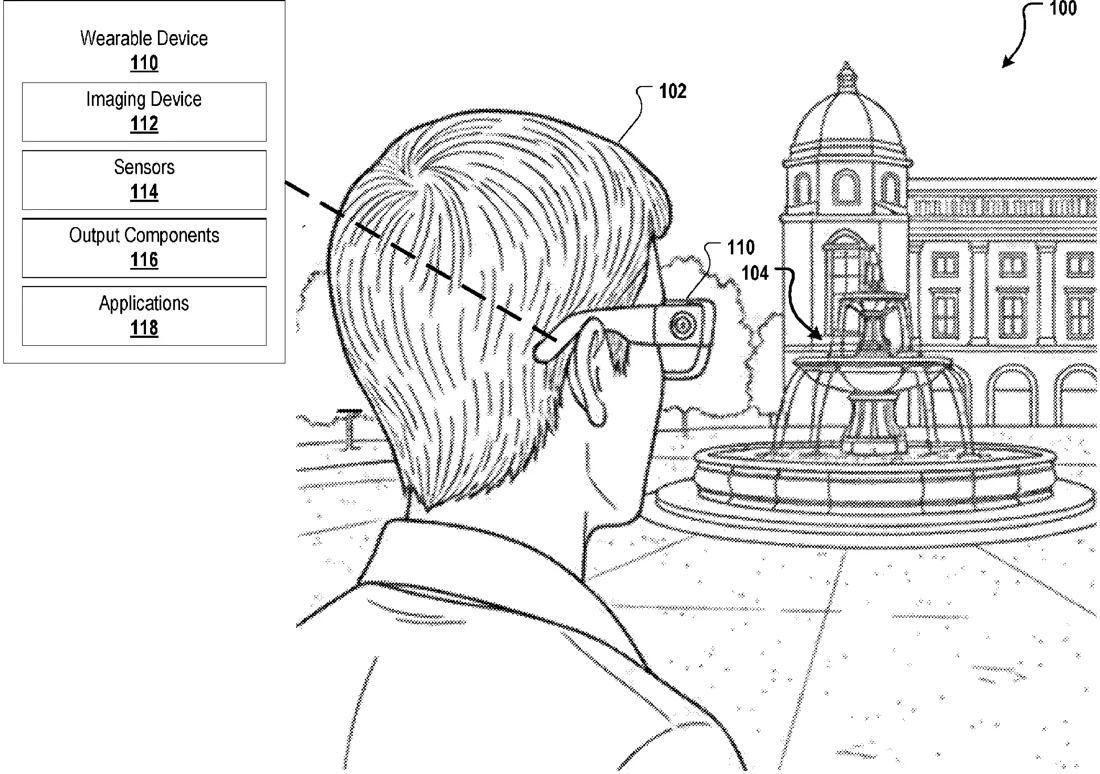

This filing describes a system that uses a camera to identify known landmarks in the environment to determine exactly where a device is pointing. By comparing the camera's view to these landmarks, the system calculates a precise orientation and provides navigation instructions. If the user turns away from the intended path, the system delivers audio cues to help them realign without needing to look at a screen.
In the filing’s own words
A system and method for perspective-aligned environmental guidance and orientation calibration include receiving image data from an imaging device and feature profiles for a set of candidate features. A feature analysis module identifies a feature from the set within the image data based on a correspondence between the image data and a feature profile. An orientation computation module calculates an orientation of the imaging device by comparing a field of view of the image data to a location of the feature, resulting in a six-degree-of-freedom calibration. An instruction synthesis module provides a navigation action via an output device based on the orientation and a navigation path. The instruction synthesis module provides the navigation action via a spatial audio signal in response to a determination that the orientation has deviated from a target heading, resulting in a reduction of cognitive load and a persistent orientation calibration.
What exactly they claim (claim 1)
1. A method comprising: receiving image data from an imaging device and a plurality of feature profiles for a set of candidate features determined based on a position of the imaging device; identifying a feature from the set of candidate features included in the image data based on a correspondence between the image data and a respective feature profile of the plurality of feature profiles; determining an orientation of the imaging device by comparing a field of view of the image data to a location of the feature; and providing, via an output device, an action determined based on the orientation and a navigation path.
Facts
- Company
- Google (GOOGLE LLC)
- Official title
- PERSPECTIVE-ALIGNED ENVIRONMENTAL GUIDANCE AND ORIENTATION CALIBRATION
- Publication number
- US20260318700A1
- Application number
- 19639889
- Filed
- Apr 6, 2026
- Published
- Oct 15, 2026
- Inventors
- 7
- Claims
- 20
Classified under
