Apple patents new signal pattern to reduce wireless data overhead

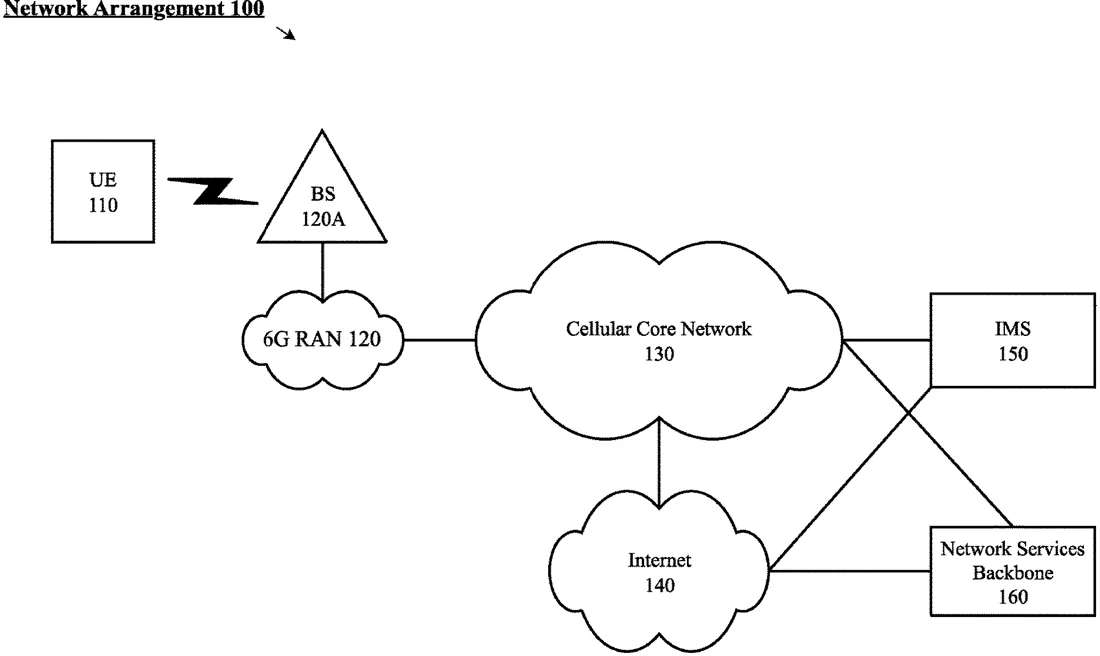

Patent drawing from the official filing.

Apple has filed a patent application for a specific way to structure demodulation reference signals (DMRS) used in wireless communication. The invention describes using a pattern called frequency domain orthogonal cover code 8 (FD-OCC-8) to help a base station better decode data sent by a device. This method aims to reduce the amount of extra data, or overhead, needed for the connection to work properly.

Why it mattersThis is a technical improvement to how wireless devices communicate with cell towers, potentially making data transmission slightly more efficient, though it is not a consumer-facing feature.

In the filing’s own words

An apparatus configured to determine a demodulation reference signal (DMRS) configuration comprising a DMRS pattern for a frequency domain orthogonal cover code 8 (FD-OCC-8) and generate, for transmission to a base station, DMRS in accordance with the DMRS configuration. In some examples, the DMRS include DMRS eType 1 DMRS or DMRS eType 2 DMRS.

What exactly they claim (claim 1)

1. An apparatus comprising processing circuitry coupled to memory, wherein the processing circuitry is configured to: determine a demodulation reference signal (DMRS) configuration comprising a DMRS pattern for a frequency domain orthogonal cover code 8 (FD-OCC-8); and generate, for transmission to a base station, DMRS in accordance with the DMRS configuration.

Facts

Company: Apple (Apple Inc.)
Official title: DMRS Design and Overhead Reduction
Publication number: US20260303284A1
Application number: 19573008
Filed: Mar 20, 2026
Published: Oct 1, 2026
Inventors: 7
Claims: 20

Classified under

H04L 5/0048 Electricity & electronics
