Apple patents gesture controls that change device modes by orientation

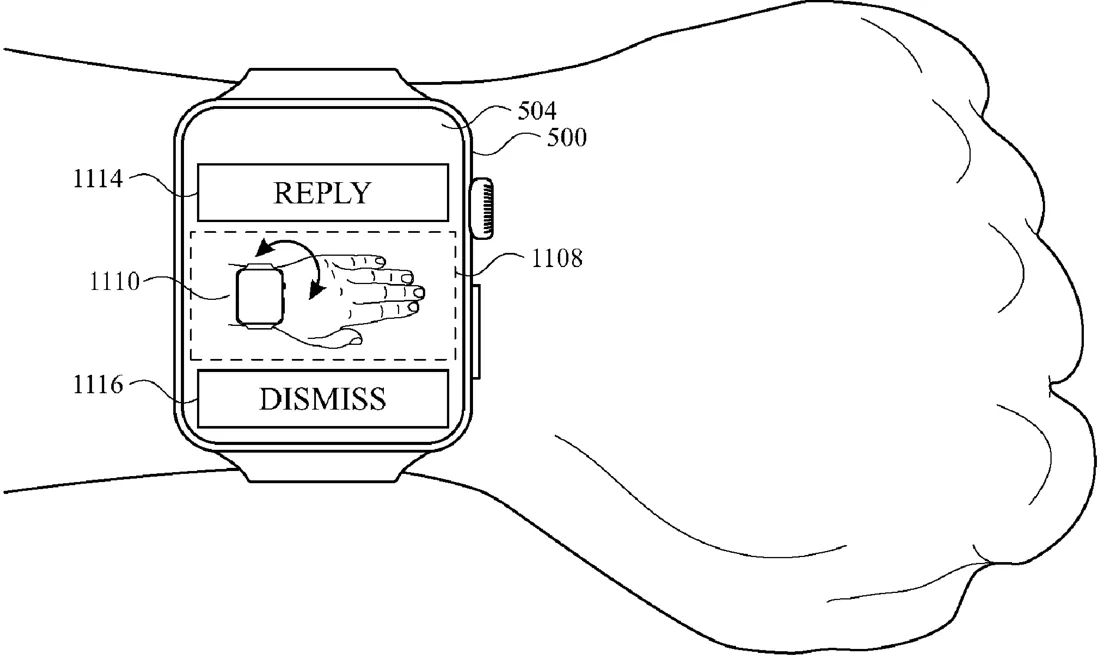

Patent drawing
Patent drawing from the official filing.

Apple has filed a patent for an electronic device that uses sensors to detect how it is held or moved. When the device meets specific orientation criteria, it switches to a special mode that changes how user inputs are interpreted.

Why it mattersThis could allow users to trigger specific functions by simply tilting or positioning their device, offering a hands-free alternative to tapping the screen.

In the filing’s own words

The present disclosure generally relates to interacting with an electronic device without touching a display screen or other physical input mechanisms. In some examples, the electronic device performs an operation in response to a positioning of a user's hand and/or an orientation of the electronic device.

What exactly they claim (claim 1)

1. An electronic device, comprising: a display screen; a sensor: one or more processors; and memory storing one or more programs configured to be executed by the one or more processors, the one or more programs including instructions for: receiving, via the sensor, a sensor input; in response to receiving the sensor input, determining whether the electronic device satisfies a mode change criteria, the mode change criteria including an orientation criterion satisfied based on an orientation of the electronic device; in accordance with a determination that the mode change criteria is satisfied: transitioning the electronic device to a first mode; and modifying a user interface to indicate the electronic device is in the first mode; in accordance with a determination that the mode change criteria is not satisfied, forgoing transitioning the electronic device to the first mode; subsequent to receiving the sensor input, receiving a user input; and in response to the user input: in accordance with a determination that the electronic device satisfies a first operation criteria, the first operation criteria including a mode criterion that is satisfied when the electronic device is in the first mode, performing a first operation; and in accordance with a determination that the electronic device does not satisfy the first operation criteria, forgoing performing the first operation.

Facts

Company
Apple (Apple Inc.)
Official title
INTERACTING WITH AN ELECTRONIC DEVICE THROUGH PHYSICAL MOVEMENT
Publication number
US20260299710A1
Application number
19701443
Filed
Jun 8, 2026
Published
Oct 1, 2026
Inventors
4
Claims
22

Classified under

G06F 3/0346 Physics & computingG04C 3/002 Physics & computingG06F 1/1694 Physics & computingG06F 3/011 Physics & computingG06F 3/016 Physics & computingG06F 3/017 Physics & computing
