Nike patents knit fabric with reinforced edges to stop fraying

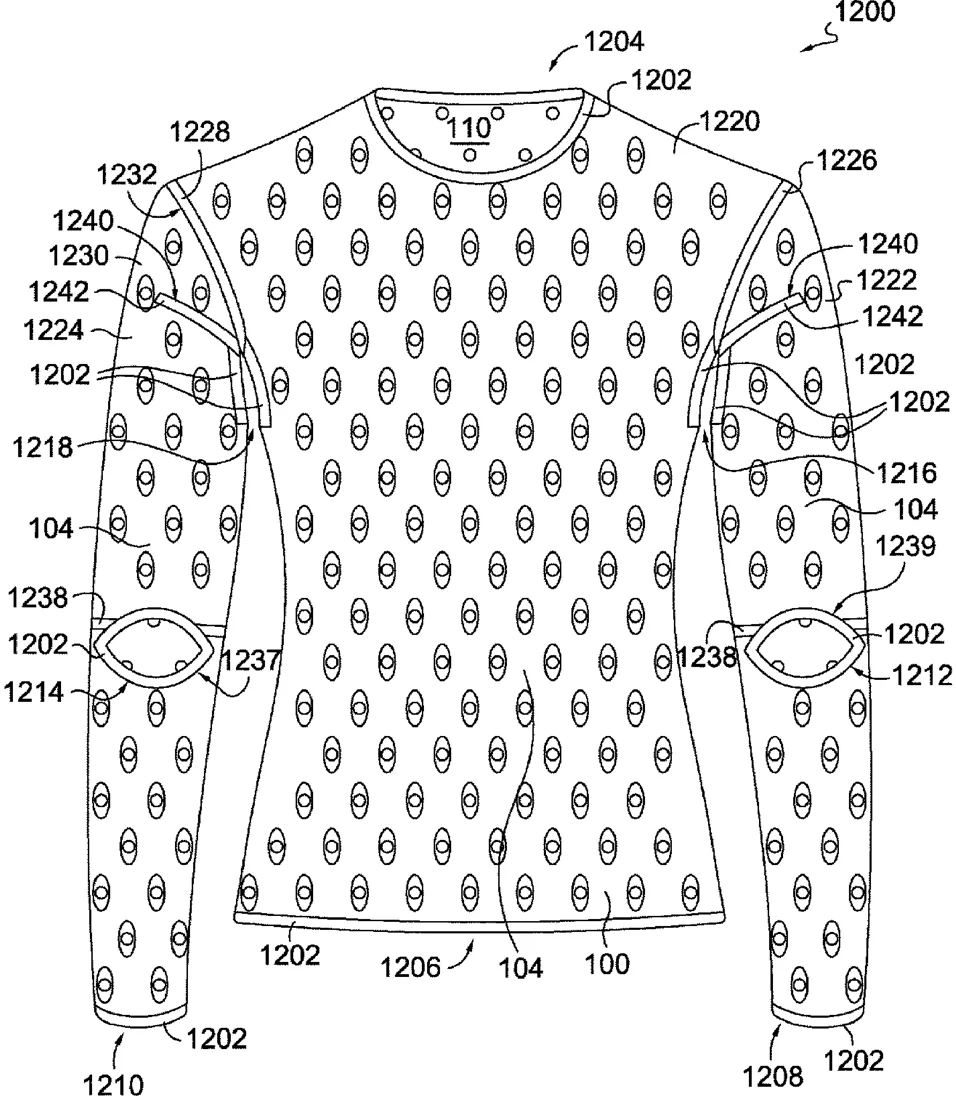

Patent drawing
Patent drawing from the official filing.

Nike describes a knit fabric made of two layers connected by small threads to create air gaps for cooling. The design adds a folded trim piece along the edges, like cuffs or waistbands, to strengthen areas that usually wear out quickly.

Why it mattersThis could make athletic clothes last longer without sacrificing the airflow that keeps runners cool.

In the filing’s own words

Aspects herein are directed to a knit spacer textile and garments incorporating the textile, designed to improve durability and prevent fraying while maintaining breathability. The textile includes a first knit layer, a second knit layer, and tie yarns interconnecting the layers. The textile may incorporate a trim piece along an edge to reinforce high-stress areas such as sleeve cuffs, waistbands, and neck openings. In some implementations, multiple knit spacer textiles are joined at a seam using one or more trim pieces, which may be bonded via welding, adhesive application, or stitching.

What exactly they claim (claim 1)

1. An article of apparel comprising: a knit spacer textile comprising a first knit layer formed from a first plurality of yarns, a second knit layer formed from a second plurality of yarns, and a plurality of tie yarns that interconnect the first knit layer and the second knit layer, a plurality of flow-through apertures extending from respective first openings in the first knit layer through the knit spacer textile to respective openings in the second knit layer, the knit spacer textile having a first edge; and a trim piece coupled to the knit spacer textile at the first knit layer at a coupling seam and along the first edge, the trim piece having a first fold such that the trim piece extends from the first fold past the coupling seam and past the first edge to a second fold, the trim piece returning from the second fold and coupled to the knit spacer textile at the second knit layer.

Facts

Company
Nike (NIKE, Inc.)
Official title
TEXTILE CONFIGURED TO PROMOTE COOLING HEM AND SEAM CONSTRUCTION
Publication number
US20260297817A1
Application number
19635667
Filed
Mar 31, 2026
Published
Oct 1, 2026
Inventors
3
Claims
31

Classified under

D04B 1/246 Textiles & paperA41B 1/08 Human necessitiesA41D 1/04 Human necessitiesA41D 1/06 Human necessitiesA41D 1/14 Human necessitiesA41D 31/02 Human necessities
