Apple patents stacked chip design with molded plastic steps
Apple describes a method for building electronic packages by stacking components on top of each other. The design uses a molded plastic layer with a stepped shape to hold the chips, with wiring running across the steps and through holes to connect the layers.
In the filing’s own words

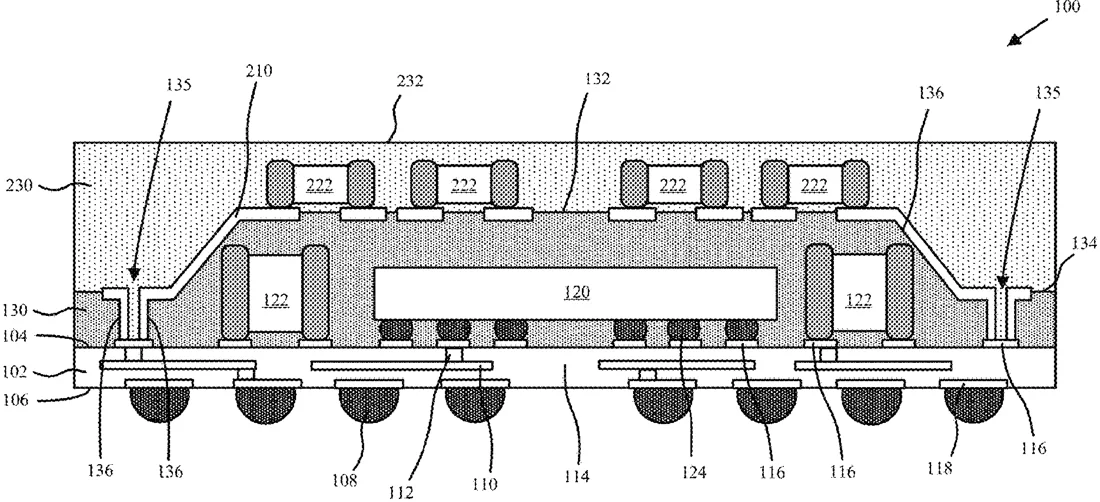

Electronic packages and methods of formation are described. In an embodiment, an electronic package includes one or more electronic components encapsulated in a step molded molding compound layer, and wiring layer spanning a lower step surface, sidewall, and top surface of the step molded molding compound layer. The wiring layer may further extend into a via opening extending through the lower step surface of the molding compound layer.
What exactly they claim (claim 1)
1. An electronic package comprising: a first-level routing layer; a first-level electronic component on the first-level routing layer; a first-level molding compound layer that encapsulates the first-level electronic component on the first-level routing layer, the first-level molding compound layer including a top surface, a lower step surface and a sidewall spanning between the top surface and the lower step surface; a first-level via opening extending through the lower step surface of the first-level molding compound layer to the first-level routing layer; a second-level wiring layer on the first-level molding compound layer and spanning the lower step surface, the sidewall, and the top surface of the first-level molding compound layer; and a second-level electronic component mounted on the second-level wiring layer.
Facts
- Company
- Apple (Apple Inc.)
- Official title
- Electronic package molded vertical interconnection
- Patent number
- US12772885B2
- Application number
- 18469243
- Filed
- Sep 18, 2023
- Granted
- Oct 20, 2026
- Inventors
- 4
- Claims
- 22
