Amazon patents modular radio chips that swap wireless standards
Amazon describes a wireless design where small, identical radio modules handle different communication standards like Wi-Fi or Bluetooth. These modules connect to central processors, allowing manufacturers to mix and match hardware pieces instead of building one large chip.
In the filing’s own words

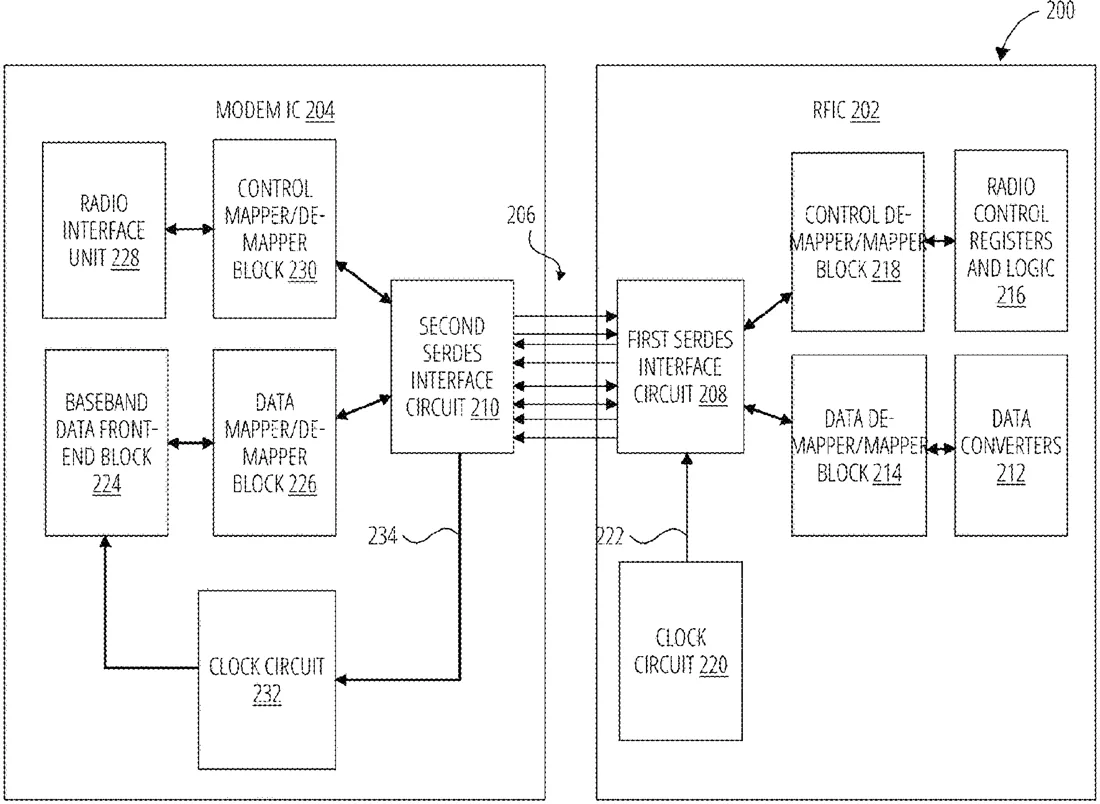

Technologies related to wireless connectivity architectures with tile radio frequency (RF) integrated circuits are described. A wireless communication subsystem includes multiple RF tiles, each of the RF tiles including identical hardware comprising a first serializer/deserializer (SerDes) interface circuit and at least two radio frequency front-end (RFFE) circuits. Each of the at least two RFFE circuits corresponding to one of multiple radio technologies. The wireless communication subsystem includes multiple baseband processors. Each of the baseband processors implementing one of the radio technologies. The wireless communication subsystem also includes a second SerDes interface circuit coupled between the baseband processors and the first SerDes interface circuit of each of the RF tiles.
What exactly they claim (claim 1)
1. A wireless device comprising: a radio frequency integrated circuit (RFIC) comprising: a first radio frequency tile (RF tile) with first data converters and a first radio frequency front-end (RFFE) circuit for a first radio technology, second data converters and a second RFFE circuit for a second radio technology, a first modem for the second radio technology, a first serializer/deserializer (SerDes) interface circuit, and a first serial peripheral interface (SPI) circuit; and a second RF tile with third data converters and a third RFFE circuit for the first radio technology, fourth data converters and a fourth RFFE circuit for the second radio technology, a second modem for the second radio technology, a second SerDes interface circuit, and a second SPI circuit; and a modem integrated circuit (IC) operatively coupled to the RFIC, wherein the modem IC comprises: a third SerDes interface circuit operatively coupled to the first and second SerDes interface circuits; a first baseband processor for the first radio technology; a first controller for the first radio technology; a second baseband processor for the second radio technology; and a second controller for the second radio technology.
Facts
- Company
- Amazon (Amazon Technologies, Inc.)
- Official title
- Wireless connectivity architecture with tile radio frequency (RF) front-end circuitry
- Patent number
- US12769697B1
- Application number
- 18807725
- Filed
- Aug 16, 2024
- Granted
- Oct 20, 2026
- Inventors
- 1
- Claims
- 20
