Meta patents wristwatch tech to estimate blood pressure
Meta has been granted a patent for a method to estimate blood pressure using a wrist-worn device. The system combines signals from an electrode in the watch band and a light sensor to measure the time delay between blood flow changes in the wrist.
In the filing’s own words
Methods, systems, and media for determining blood pressure are provided. According to some methods, a method for determining blood pressure comprises: obtaining a first impedance cardiography (BioZ) signal from a first electromyography (EMG) electrode disposed proximate an artery of a wearer of a wrist-worn device and a photoplethysmography (PPG) signal using a PPG sensor of the wrist-worn device, wherein the first EMG electrode is disposed in or on a band of the wrist-worn device; identifying a time point in the first BioZ signal associated with a predetermined biomarker and a corresponding time point in the PPG signal associated with the predetermined biomarker; determining a time delay between the time point in the first BioZ signal and the corresponding time point in the PPG signal; and determining a blood pressure of the wearer of the wrist-worn device based at least in part on the time delay.
What exactly they claim (claim 1)

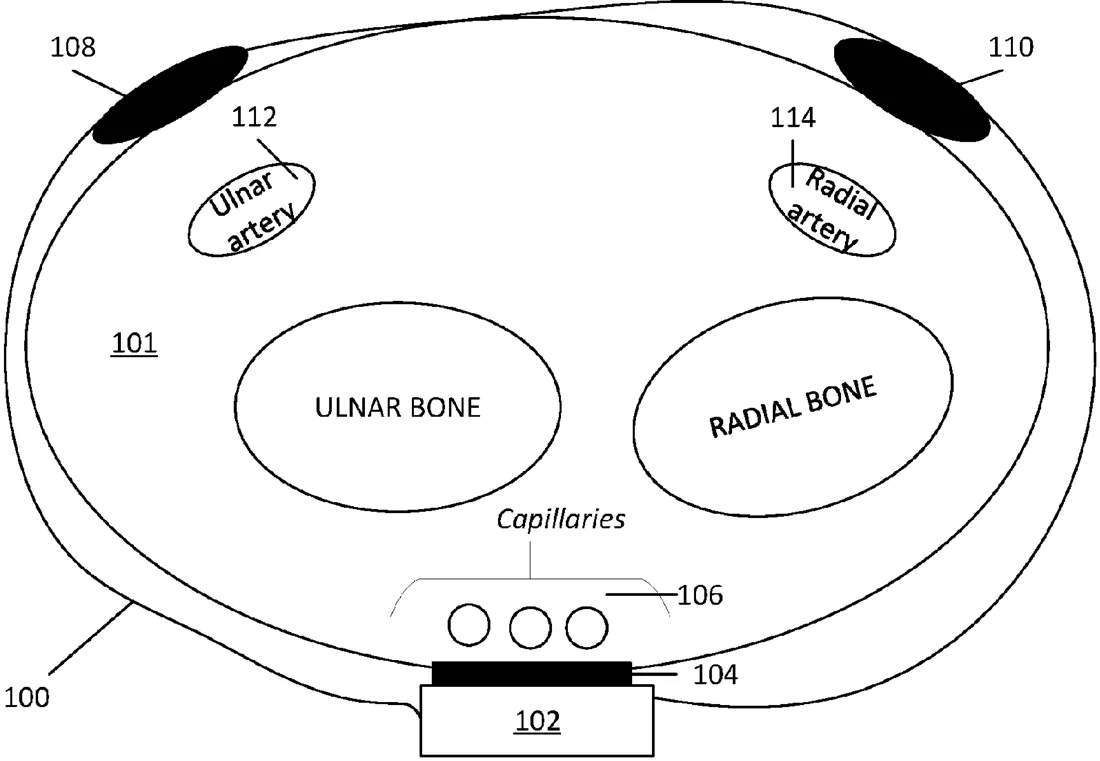

1. A method of determining blood pressure, the method comprising: obtaining a first impedance cardiography (BioZ) signal from a first electromyography (EMG) electrode disposed proximate to an artery of a wearer of a wrist-worn device and a photoplethysmography (PPG) signal using a PPG sensor of the wrist-worn device, wherein the first EMG electrode is disposed in or on a band of the wrist-worn device; identifying a time point in the first BioZ signal associated with a predetermined biomarker and a corresponding time point in the PPG signal associated with the predetermined biomarker; determining a time delay between the time point in the first BioZ signal and the corresponding time point in the PPG signal; and determining a blood pressure of the wearer of the wrist-worn device based at least in part on the time delay, wherein the first EMG electrode is selected from at least two or more EMG electrodes located proximate to the radial artery or the ulnar artery and the selection is based at least in part on a comparison of variances in BioZ signals obtained from the at least two EMG electrodes, and wherein the BioZ signals determine impedance changes reflective of blood volume changes in the radial artery or the ulnar artery.
Facts
- Company
- Meta (Meta Platforms Technologies, LLC)
- Official title
- Blood pressure determination
- Patent number
- US12765786B1
- Application number
- 18481084
- Filed
- Oct 4, 2023
- Granted
- Oct 20, 2026
- Inventors
- 1
- Claims
- 18
Classified under
A61B 5/02108 Human necessitiesA61B 5/256 Human necessitiesA61B 5/397 Human necessitiesA61B 2560/02 Human necessitiesMore from Meta in Health & body
- Meta patents system to guide users in making muscle-based gestures Oct 1, 2026
- Meta patents skin sensor that uses polarized light for health checks Oct 8, 2026
Summaries are simplified from the filing’s own abstract and first claim. A patent filing is not a product announcement.
Patent data and drawings: U.S. Patent and Trademark Office (USPTO). Nebula is not affiliated with or endorsed by the USPTO.
