Amazon patents fabric bins for robotic warehouses

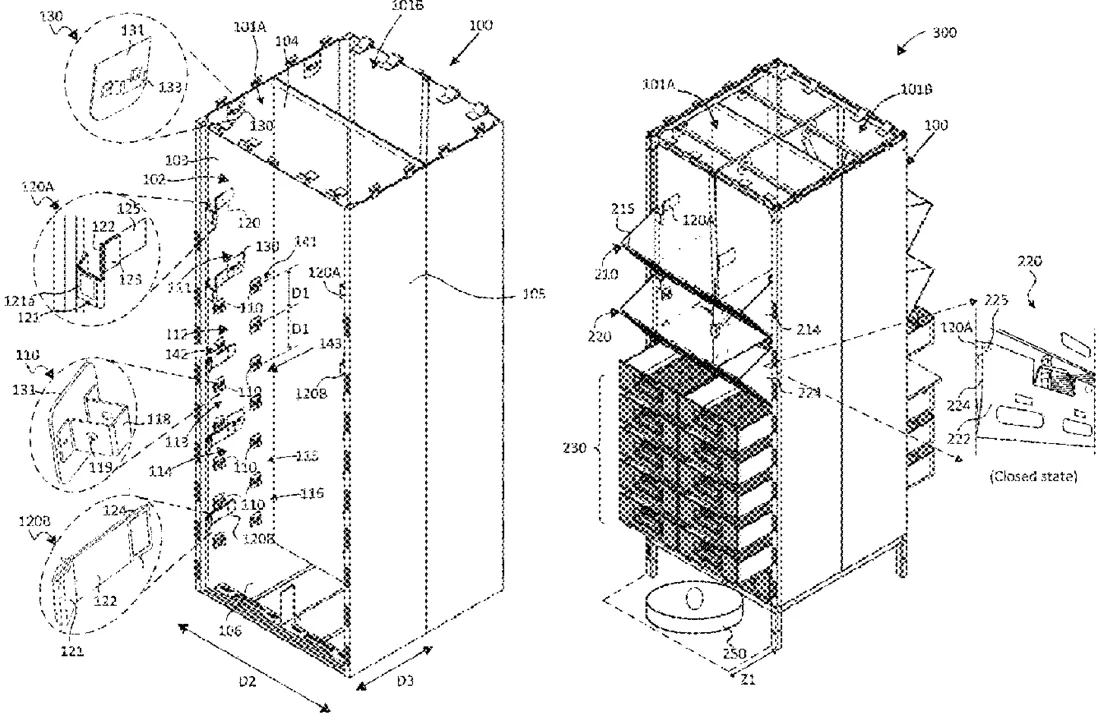

Amazon describes a storage system using fabric sleeves and simple bins that fit onto a frame. The bins have tilting doors with accordion-style connectors that limit how far they open, allowing them to snap shut securely.
In the filing’s own words
An inventory holder assembly can include a fabric sleeve and a simple bin. The fabric sleeve can be installed on a frame. The fabric bin can include a plurality of compartments, and engagement tabs can be disposed within a first compartment of the plurality of compartments. Each compartment can include a set of mounts arranged to facilitate modular arrangement of bins. The simple bin can be disposed in the first compartment. The simple bin can include a base releasably coupled to the set of mounts of the first compartment, and a tiltable door pivotably attached to the base. The tiltable door can include a releasable fastener engageable with the engagement tabs of the first compartment to securely close the simple bin and disengageable by tilting the tiltable door to open the simple bin.
What exactly they claim (claim 1)
1. A simple bin system including a simple bin comprising: a base including a front edge; and a tiltable door comprising: a panel including a releasable fastener disposed along at least one side portion of the panel; and a bottom edge pivotably coupled along the front edge of the base, wherein the panel extends upward from the base; and collapsible connectors attached to and extending at least partially along opposite side portions of the panel toward the base, wherein in an open state, the panel is configured to partially tilt with respect to the base while the collapsible connectors limit tilting of the panel to a specified degree, wherein each of the collapsible connectors is an accordion connector having an arcuate length configured to limit tilting of the panel to the specified degree, and wherein in a closed state, the panel is configured to stay closed via the releasable fastener while the collapsible connectors are collapsed.
Facts
- Company
- Amazon (Amazon Technologies, Inc.)
- Official title
- Modular fabric pod for changing seasons and fashion trends in robotic micro-fulfillment
- Patent number
- US12745864B1
- Application number
- 18122034
- Filed
- Mar 15, 2023
- Granted
- Sep 29, 2026
- Inventors
- 4
- Claims
- 12
Classified under
A47F 7/19 Human necessitiesA47F 3/063 Human necessitiesA47F 5/0081 Human necessitiesA47F 3/02 Human necessitiesA47F 3/06 Human necessitiesA47F 5/0018 Human necessitiesMore from Amazon in Robots & automation
